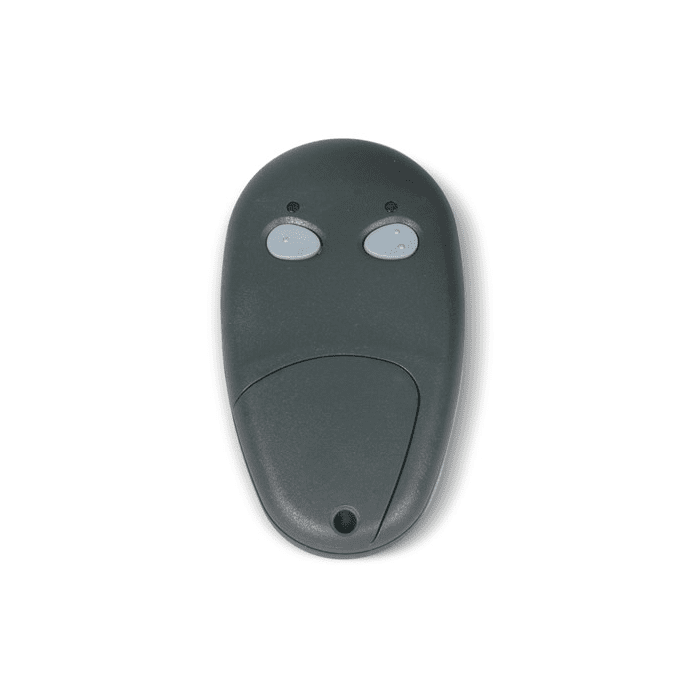

USAutomatic WIRELESS REMOTE (2 BUTTON)

The USAutomatic Wireless Remote (2 Button) is a handheld dip-switch transmitter designed to control automatic opening systems and anti-burglar systems. Operating at 433.92 MHz, it sends a coded radio signal to a compatible receiver that is connected to the device it controls, such as a gate, rolling shutters, awnings, anti-burglar appliances, or lighting.

Each of the two buttons (Channel A and Channel B) can be programmed into the receiver's memory, and a single transmitter or its individual buttons can be stored into multiple receivers to perform additional functions. The security code is set by 9-way, three-position dip-switches, allowing up to 19,683 code combinations. Each unit ships with a factory default code that should be changed to a random pattern to help prevent unauthorized access, and multiple transmitters can share the same switch pattern to simplify programming.

Programming is straightforward: hold down the desired transmitter button while pressing the appropriate programming button (P1 or P2) on the receiver until the receiver's indicator lights up. A red LED on the transmitter confirms signal transmission, and the slide-open access panel provides access to the battery and dip-switches.

• 2-button transmitter (Channel A and Channel B), Part #030210
• Operating frequency: 433.92 MHz with AM/ASK modulation
• Up to 19,683 code combinations via 9-way three-position dip-switches
• Range in free space: 180–360 feet
• Powered by one 12V type 23A alkaline battery with 12–18 month battery life
• Operating temperature: 0–130 °F; dimensions 3.26 x 1.88 x 0.62 in; weight 20 g
• Backed by a 1-year USAutomatic warranty against defects in materials and workmanship
