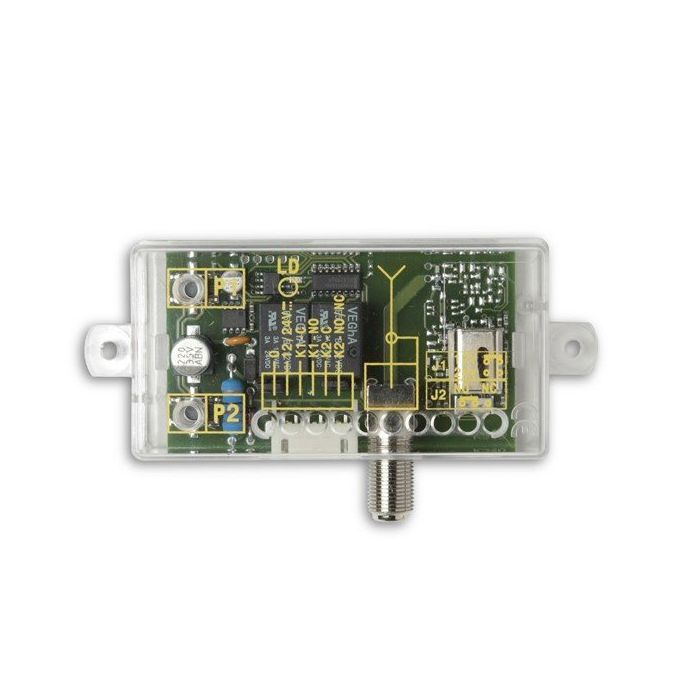

USAutomatic WIRELESS RECEIVER 12/24 VDC

The USAutomatic Wireless Receiver 12/24 VDC (PN 030207) is a two-relay output receiver operating at 433.92 MHz with AM/ASK modulation. It is designed for use with automatic closing systems and anti-burglar systems, using a superheterodyne design and a tuned antenna connected via an F-type connector.

The receiver provides two relay outputs: P1 with C and N/O contacts operating in Pulse mode, and P2 with selectable C/N-O or C/N-C contacts (via jumper J2) operating in either Pulse or Latch mode. The latching mode on P2 can be programmed to hold a gate open, overriding the auto-close feature when enabled. Power can be selected for 12 or 24 Vdc/Vac via jumper J1, and the receiver stores up to 42 transmitter keys with the ability to erase a single transmitter or the full memory.

With an IP grade of 2X, this receiver is intended for indoor installation. It is compatible with the 2-button transmitter (Item 030210) and 4-button transmitter (Item 030212), and a built-in LED flash sequence lets installers read the number of stored transmitter codes in binary notation.

• Operating frequency: 433.92 MHz, AM/ASK, superheterodyne receiver type
• Two relay outputs (1 NO, 1 NO/NC); P1 Pulse, P2 selectable Pulse or Latch mode
• Supply voltage selectable 12 / 24 Vdc/Vac (±10%) via jumper J1
• Stores up to 42 transmitter keys with single or full memory erasure
• Switchable max power 24W or 24VA; sensitivity -115 dBm; 75 Ohm input impedance
• Operating temperature -4 to +158 °F; dimensions 4.13 x 1.77 x 1.1 in; weight 2.29 oz; IP grade 2X (indoor)
• Complies with EMC European Regulations (CE) and FCC Part 15; 1-year warranty
