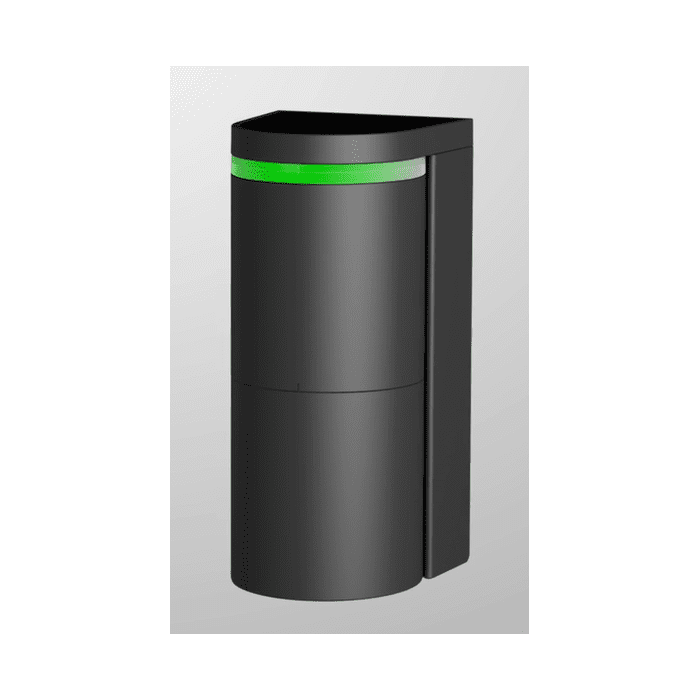

Optex Virtual Loop 2.0 Vehicle Sensor-Black

The Virtual Loop 2.0 (Model OVS-02GT) is a vehicle presence sensor designed for use on gates and barriers. Using advanced Distance Measuring Radar, it reliably detects vehicles of all sizes while ignoring nearly all human movement, giving your customers dependable activation and presence detection across a wide range of gate applications.

This sensor eliminates the hassles of installing and servicing in-ground loops—no cutting, coring, or drilling of concrete or asphalt is required. It installs directly to a single gang box or OPTEX Mini Posts and offers direct conduit access, making setup straightforward. The unit remains extremely stable under all types of weather conditions and is configured via a smartphone app, with a visible indicator providing clear status feedback.

It can be programmed to ignore or detect humans based on the application, supporting barrier gates, slide gates, and swing gates, as well as protection, count, and traffic control functions.

• Microwave (FMCW) Distance Measuring Radar; 24GHz detection with 2.4GHz BLE communication
• Adjustable detection range from 6 to 26 ft, with wide angle adjustment (left and right ±93°)
• Flexible power supply: 12 to 24V AC/DC
• IP66 rated for indoor/outdoor use with water resistance and an improved built-in heater
• Two non-voltage relay outputs and improved human cancellation
• Operating ambient temperature of -22 to 122°F
• Settings configured via smartphone app with multi-color status indicator
