Liftmaster Video Camera Kit for CAPXL-Retrofit

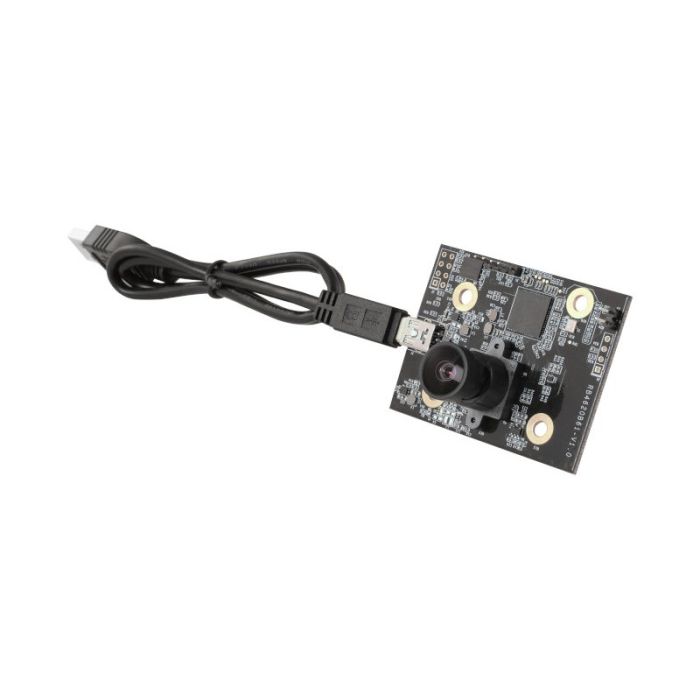

The CAPXLCAM is a USB camera kit designed to add video capability to a LiftMaster CAPXL access-control system. It is supplied as a complete retrofit assembly and is the only USB camera supported by the CAPXL and myQ® Business™ video features, as well as the only camera evaluated by UL for use with the CAPXL.

The kit installs into the CAPXL by replacing the existing camera bracket and connecting the camera via the included USB cable to USB Port #3 on the controller. Once connected, the video feed can be confirmed in CAPXL Admin Mode, where installers verify the camera angle and orientation. Video functions such as event recording and the Guest View Feature are configured through a myQ® Business™ account.

This kit is intended for qualified installers servicing CAPXL units at gated communities, commercial properties, and other managed-access sites. The CAPXL must be running Firmware version 2.0 or higher, and the CAPXL/CAPXLV can connect to a network via wired or Wi-Fi connection. Note that live streaming within myQ® Business™ requires an access-control subscription.

• Includes camera assembly, camera bracket, USB cable, and mounting hardware bag (2x screws)
• The only USB camera supported by CAPXL and myQ® Business™ video features, and the only camera UL-evaluated for CAPXL use
• Connects specifically to USB Port #3 (upper right) on the CAPXL controller
• Requires CAPXL Firmware version 2.0 or higher
• Video feed verified through CAPXL Admin Mode (entered via dip switch #1)
• Supports myQ® Business™ features including event recording and the Guest View Feature
• Recommended Internet speed of 25 Mbps download / 10 Mbps upload for best video performance (minimum 10 Mbps download, 5 Mbps upload per video-supporting CAPXL)
