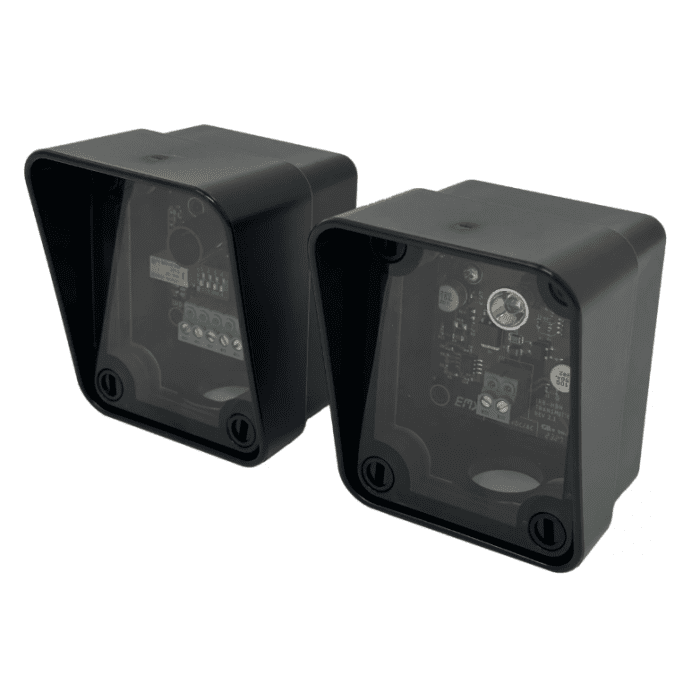

EMX Industries UNIVERSAL UL325 BEAM PHOTOEYE

The IRB-MON2 is a universal UL325 thru-beam photoeye from EMX Industries, designed to add reliable obstruction detection to gate and access-control systems. Building on the success of the original IRB-MON, this version delivers advanced features in a smaller, more convenient package, with an operating range of 5 to 115 ft (35 m).

Engineered for adaptability, the IRB-MON2 supports multiple UL325 monitoring methods, allowing it to integrate with a wide variety of systems. A removable screw terminal block simplifies wiring—remove the blocks while connecting wires, then plug them back in and secure them. The IP65-rated housing and integrated sensor hood shield the device from the elements for reliable performance and confident installation.

It's well suited for gate operator and access-control installations where dependable, weather-resistant beam detection is required across a range of supported monitoring configurations.

• Operating range: 5 to 115 ft (35 m)
• Power: 6-35 VDC, 12-24 VAC
• Supported monitoring methods: 10K, 2-wire pulse, Normally Closed (power cycle)
• Form C relay contacts (NO, COM, NC); response time
• IP65-rated housing with integrated sun shield/hood
• Removable screw terminal block for easy wiring
• Operating temperature: -40° to 170°F (-40° to 77°C); 0.83" conduit hole fits 1/2 in. NPT
