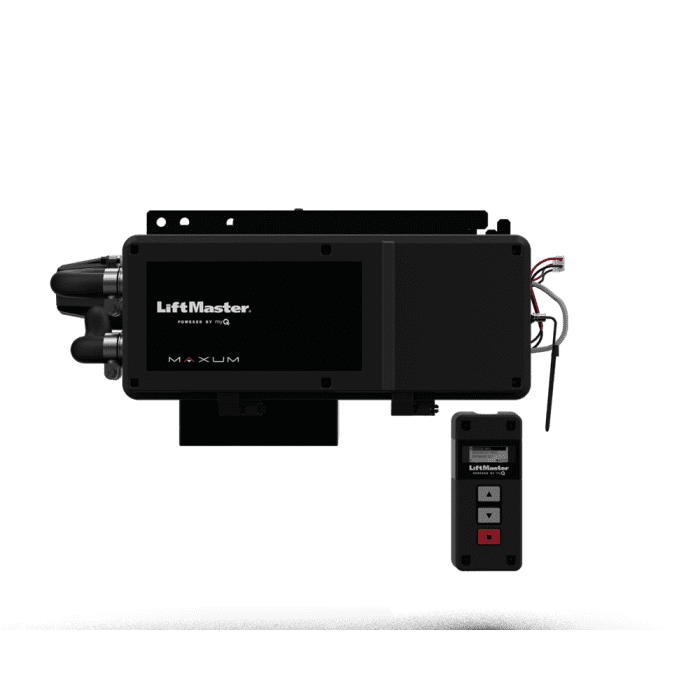

Liftmaster Trolley Std Duty 700#

The Liftmaster Trolley Std Duty 700# is a next-generation MAXUM DC commercial door operator engineered for sectional door installations. Built with a high-efficiency motor and gearbox, it delivers the power needed to move commercial doors while supporting standard-duty applications rated up to 700 lbs. Smooth start/stop operation helps extend the life of both the operator and door hardware.

Designed for easier installation and service, this trolley operator features a side-mounted control box that installs and opens at eye level and can be relocated to the opposite side if needed. The push-and-play, color-coded terminals let you secure wires without tools, while the included Floor Level Wall Controller brings programming, diagnostics, and troubleshooting down to the floor through a 4-line LCD display. Connect to myQ Facility via Wi-Fi for visibility and control of your door from a web browser—no additional hubs required.

Ideal for commercial facilities seeking smarter, more serviceable door automation, the operator supports up to 3 monitored entrapment protection inputs, on-board Security+ 2.0 radio, and battery backup capability for operation during power outages. It is UL Listed to ANSI/CAN/UL325 for the USA/Canada and certified to NOM/IFETEL standards for Mexico.

• 24VDC motor drive with 65:1 gearbox and #50 chain, plus an electromechanical brake
• Faster speed: 12 inches per second average opening on sectional doors
• 3 monitored entrapment protection inputs with tool-free, color-coded push-and-play terminals
• Wi-Fi connectivity to myQ Facility and over-the-air updates
• Security+ 2.0 on-board radio receiver supporting up to 90 remote controls (up to 1,000 via myQ Facility)
• Battery backup capable for standby power during outages
• UL Listed to ANSI/CAN/UL325; 2-year commercial warranty
