Timerco Timer, 7 day-12vac/dc

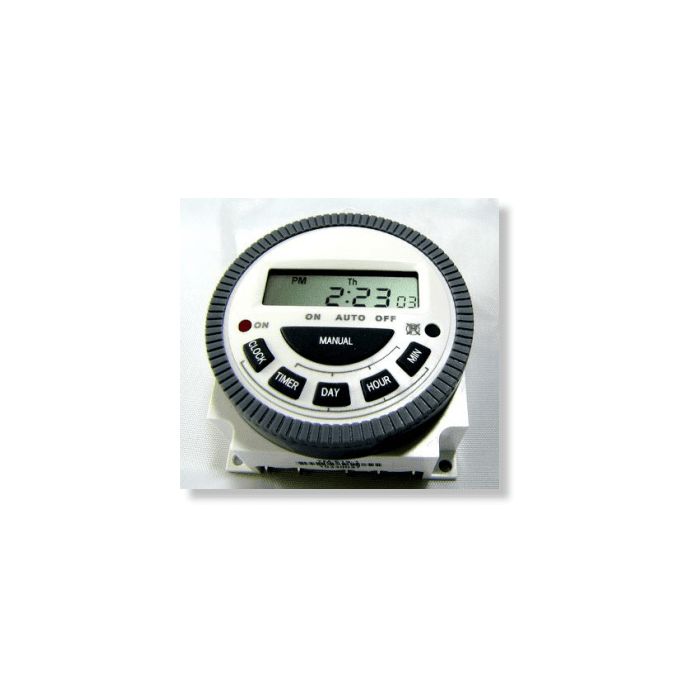

The Timerco TM619 is a 7-day programmable timer that supports up to 8 on/off functions per day. This version operates on 12VAC/DC and is intended for controlling timed devices in access-control, gate, and general electrical applications. The specified supply voltage powers the timer itself, while the load is switched through the output relay.

The timer uses dedicated terminals for supply power (terminals 1 and 2) and for the timed load (terminals 3, 4, and 5). Notably, the voltage powering the load does not need to match the voltage powering the timer, giving flexibility across a range of applications. A CR2032 lithium battery keeps the clock accurate and typically lasts 2-3 years before needing replacement.

Programming is straightforward, with a clock-setting routine and 15 built-in daily program settings to simplify scheduling for common day groupings (for example, Monday through Friday). The unit also includes an anti-burglar override that randomly turns a connected light or radio on once every 10-120 minutes for added security while you are away.

• 7-day timer with up to 8 on/off functions per day
• 12VAC/DC supply voltage for the timer
• Output relay rated to 16A resistive / 8A inductive at 250VAC, 20A resistive at 125VAC, and 16A at 30VDC
• Load voltage does not need to match the timer's supply voltage
• 15 built-in daily program settings for simplified scheduling
• CR2032 lithium battery backup keeps time accurate for approximately 2-3 years
• Anti-burglar random override mode for lights or a radio
