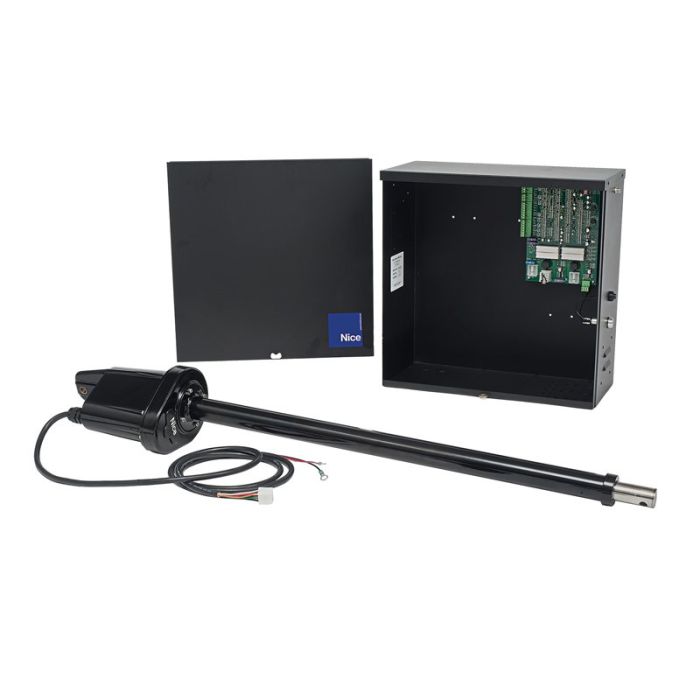

HySecurity Gate SWGO-Single Residential/Light Comml

The SWGO-Single (Code 1500) from HySecurity Gate, Inc. is a 12 Vdc swing gate actuator designed for single-gate installations on swing gates up to 600 lbs and 16 ft in length. It is recommended for residential, farm, and ranch applications, and can be easily installed on most existing or new gates with practical external adjustment of the limit switches.

This single-gate version operates on the smart Apollo 635 circuit board, offering an automatic adjustable close timer, adjustable current sensitivity for automatic safety reverse, and a wide range of inputs for accessories such as exit, hold open and under gate loops, safety edges, free exit, probes, keypads, telephone entry and intercom systems, pushbuttons, locks, and radio receivers. It is solar compatible, with an optional required 12 V battery that can be charged by either solar or AC power, providing reliable operation in any condition.

The direct drive system attaches directly to the gate and can be configured in push-to-open or pull-to-open mode, allowing flexible placement inside or outside the gate regardless of hinge side or swing direction. Built for durability, it features a weather resistant NEMA 3R powder coated black housing, a rust proof linear acme screw drive, and self-lubricating gears.

• Single-gate actuator for swing gates up to 600 lbs and 16 ft each
• 12 Vdc operation; solar or AC charging with optional required 12 V battery
• Includes the intelligent Apollo 635 circuit board with adjustable close timer and current sensitivity
• Push-to-open or pull-to-open configurable direct drive system
• Weather resistant NEMA 3R powder coated black housing with rust proof acme screw drive and self-lubricating gears
• Open 90° speed of 14–16 seconds; working temperature -40 to +150°F
• Supplied with 8 ft (2.4m) of cable
