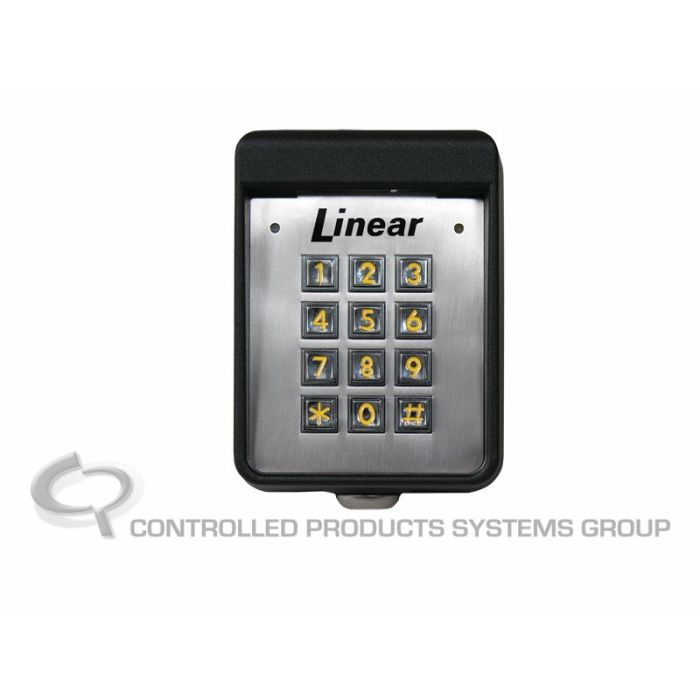

Linear Stand Alone Keypad-Exterior S/M

The Linear Stand Alone Keypad is an exterior surface mount digital keyless entry keypad designed for single entry point access control. It grants access to authorized personnel by entering an assigned code, making it well suited for controlling automatic gates, electric door strikes, magnetic door locks, and solenoid locks.

Built for outdoor or indoor use, the keypad features a rugged cast aluminum enclosure with a neoprene gasket that seals out moisture, and it can be mounted on a wall or pedestal. A built-in courtesy light illuminates the keypad when a key is pressed, and a key lock secures the unit to its mounting backplate. All programming is performed directly at the keypad, with no separate programmer required.

With support for entry codes one to six digits long, multiple programmable outputs, and a range of extended security features, this keypad is a versatile choice for contractors and property owners building reliable, stand-alone access points.

• Exterior surface mount design for wall or pedestal installation, indoors or outdoors
• Rugged cast aluminum enclosure with neoprene gasket to seal out moisture
• Key lock secures the keypad to its mounting backplate
• Built-in courtesy light illuminates the keypad when a key is pressed
• Supports entry codes one to six digits long, with up to 480 programmable codes
• Four independent outputs (two relay and two solid-state) with programmable timed or latch toggle actions
• All programming done at the keypad; EEPROM memory retains codes and settings after power outages
