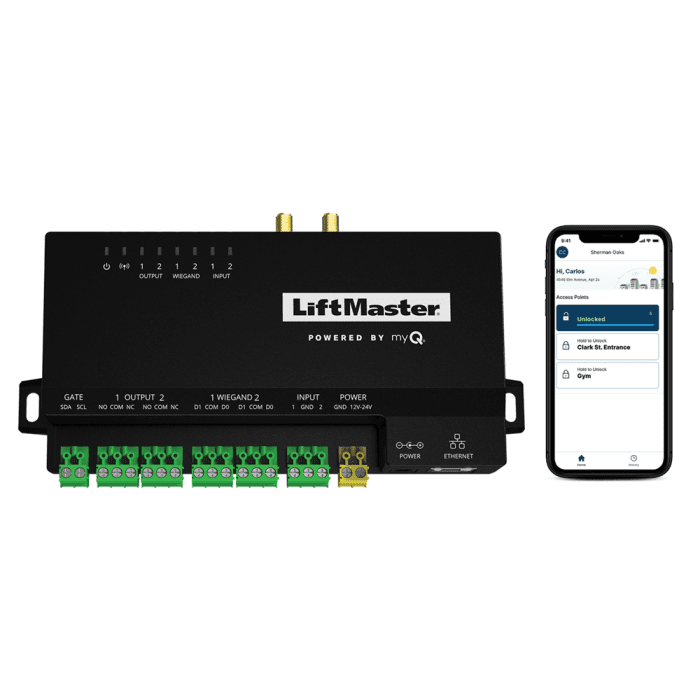

Liftmaster Smart Access Hub

The LiftMaster Smart Access Hub (CAPAC) is a cloud-based access-control solution that lets communities monitor and control access points without upgrading their entire system. Designed for both new and retrofit installations, it offers plug-and-play setup and connects through the myQ Community platform to give property managers and residents a flexible, affordable way to manage entrances.

Using the myQ Community web platform, managers can control multiple access points across an entire portfolio from a single dashboard, add or remove residents, assign access to specific connected entrances, and receive real-time activity alerts. With the optional myQ Community app licenses, residents can unlock entrances for themselves or their guests directly from a smartphone, while cloud-based security helps protect data and safeguard resident information.

CAPAC controls up to 4 access points—including vehicle, pedestrian, and amenity gates, door strikes, or maglocks—and integrates with other myQ Community smart access products such as the CAPXL V, CAPXM, and CAP2D. A myQ Community subscription is required, with app licenses available as an optional add-on.

• Controls up to 4 access points with 2 primary relay outputs, 2 Wiegand outputs, and 2 monitored auxiliary inputs
• Flexible connectivity: Wi-Fi, Ethernet/DSL, and 4G LTE cellular (dual carrier: AT&T primary, T-Mobile fall-back)
• Cloud-based management for up to 50,000 users and event history per unit, with real-time email notifications
• Supports 26-bit, 30-bit, 32-bit MiFare, and 37-bit Wiegand output formats
• Supply voltage 6 to 24VDC (transformer not included); surface mount; ABS plastic enclosure
• Operating temperature -20°F to 130°F; UL 294 recognized; 2-year warranty
• Plug-and-play install for new or retrofit projects; includes cellular antenna and manual
