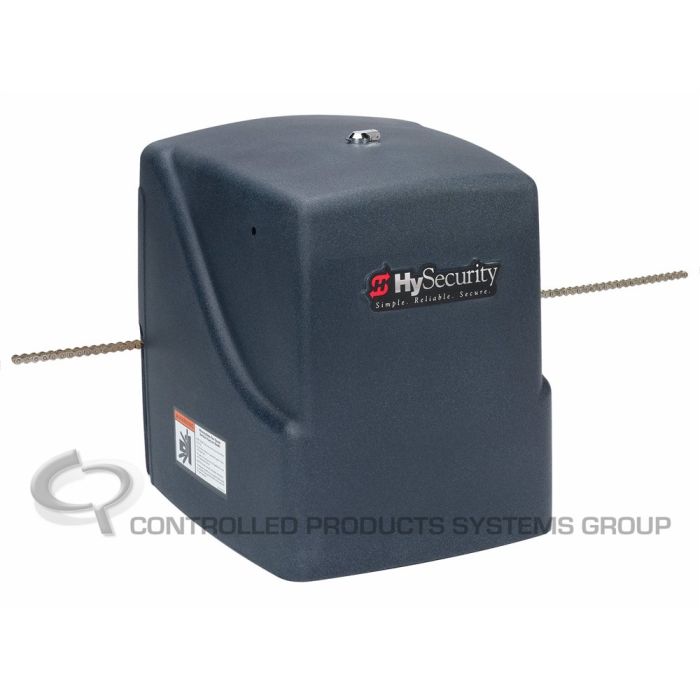

HySecurity Gate SLGO UPS Backup 1 fps

This UPS Backup option from HySecurity Gate, Inc. provides battery backup power for SlideSmart DC slide gate operators, keeping your gate running when AC power is unavailable. It is part of HySecurity's Smart DC system, which is designed for the reliability, low maintenance, and consistent operation expected on commercial and critical infrastructure sites.

The standard battery backup uses two 12V 8Ah batteries to handle gate operation during a power outage, delivering up to 4,000 ft (1,219 m) of gate travel after AC power loss. The system can be field configured to fail open or fail secure when the batteries deplete, and it offers four user-selectable UPS configurations to match your site's needs.

For applications requiring more runtime, optional 50Ah extended batteries quadruple DC cycles after a power failure, providing up to 25,000 ft (7,620 m) of gate travel. An intelligent charging system monitors battery condition to help maximize battery life. Because accessories draw on battery power, accessory selection is important to lower battery power consumption.

• Two 12V 8Ah batteries operate the gate when AC power is unavailable
• Standard backup delivers up to 4,000 ft (1,219 m) of gate travel after AC power loss
• Optional 50Ah extended batteries provide up to 25,000 ft (7,620 m) of travel and quadruple DC cycles
• Four user-selectable UPS configurations available
• Field configurable to fail open or fail secure when batteries deplete
• Intelligent charging system monitors battery condition to maximize battery life
• Solar ready for use with SlideSmart DC operators
