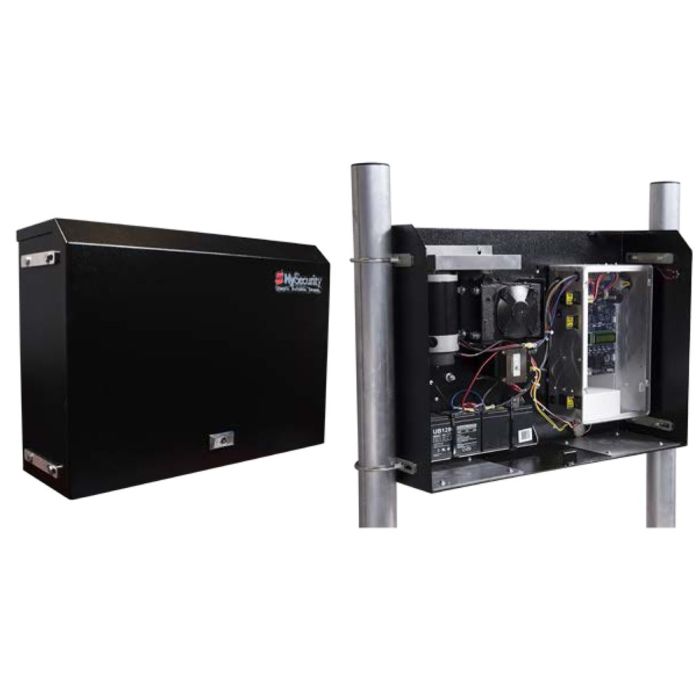

The SlideSmart HD is a pad- or post-mount vehicular slide gate operator from HySecurity Gate, Inc., built around the Smart DC Controller. It pairs a low-flex, corrosion-resistant steel chassis with a key-locked, fade-resistant steel cover, and uses a continuous-duty 24V DC motor that drives the gearbox under variable speed control. This SlideSmart HD 25 configuration is rated for slide gates up to 50 feet long and 2,500 pounds (15m and 1,134kg).

Designed for smooth, controlled handling, the operator applies a variable rate of acceleration and deceleration based on gate weight and length. The Intelligent Inherent Entrapment Sensor (IES) monitors gate power and stops gate movement when an impediment is detected, in accordance with UL 325 safety standards. Independent open and close speed settings, a close timer, and adjustable IES sensitivity are all configured through on-board menus.

Suited for automated vehicular slide gate access control on properties requiring reliable operation, the unit supports UPS battery backup for use during power outages and offers diagnostic and configuration access for installers and maintenance personnel.

• Rated for slide gates up to 50 feet long and 2,500 pounds (15m / 1,134kg)
• Continuous-duty 24V DC motor with variable speed control via the Smart DC Controller
• Operating temperature range of -13°F to 158°F (-25°C to 70°C)
• UPS backup with two 12V 8Ah batteries; removable battery tray accommodates optional 50Ah batteries for extended outages
• Over 55 menu items plus two user relays configurable for over 30 functions
• 32-character LCD and USB communications port for programming, diagnostics, and START software
• Opto-isolators protect controller components from power surges and lightning strikes
