HySecurity Gate SLGO HD cycles up to 3,000lb/50Ft

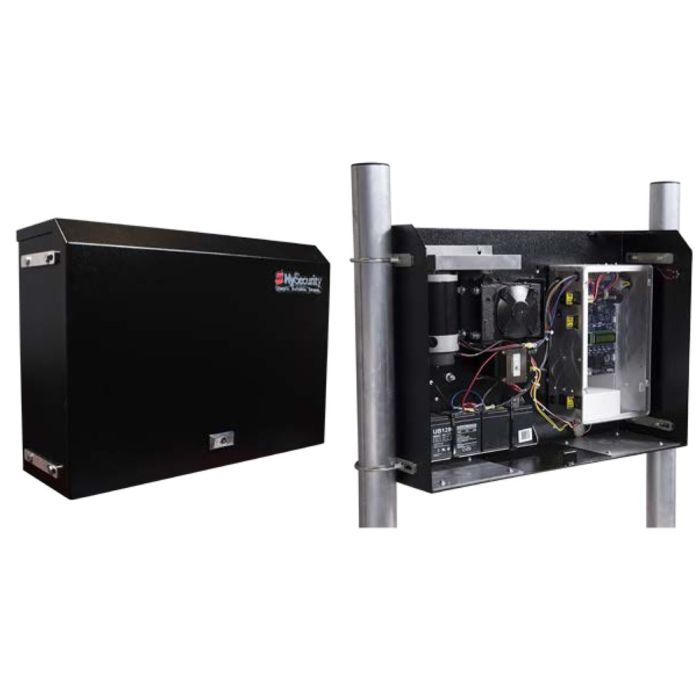

The SlideSmart HD is a pad or post-mount vehicular slide gate operator from HySecurity Gate, Inc., built around the Smart DC Controller. It features a low-flex, corrosion-resistant steel chassis paired with a key-locked, fade-resistant steel cover, and the controller components are protected by opto-isolators that shield them from power surges and lightning strikes.

This operator uses variable speed control to drive a continuous-duty 24V DC motor connected to a gearbox. Variable acceleration and deceleration rates, dependent on gate weight and length, deliver smooth gate handling. This HD 30 configuration is rated for slide gates up to 50 feet long and 3,000 pounds (15m and 1,361kg). The electronics, motor, and gearbox are rated to operate in temperatures ranging from -13°F to 158°F (-25°C to 70°C).

Designed for automated vehicular slide gate applications, the operator supports both front and rear installation, bi-parting gate systems, and a wide range of accessory devices including vehicle detectors, entrapment sensors, photo eyes, edge sensors, and locks. Installation should comply with ASTM F2200, local codes, and NEC standards.

• Rated for slide gates up to 50 feet long and 3,000 pounds (15m / 1,361kg)
• Continuous-duty 24V DC motor with variable speed control and independent open/close speed adjustment
• Smart DC Controller with over 55 menu items, two configurable user relays (over 30 functions), and a 32-character LCD
• Intelligent Inherent Entrapment Sensor (IES) stops gate movement per UL 325, with adjustable trip threshold
• UPS backup using two 12V 8Ah batteries (up to 4000ft/1219m of gate travel) with four user-selectable UPS modes; removable battery tray accommodates optional 50Ah batteries
• 12VDC and 24VDC available to power accessory controls
• USB communications port for diagnostics and configuration via Smart Touch Analyze and Retrieve Tool (START) software
