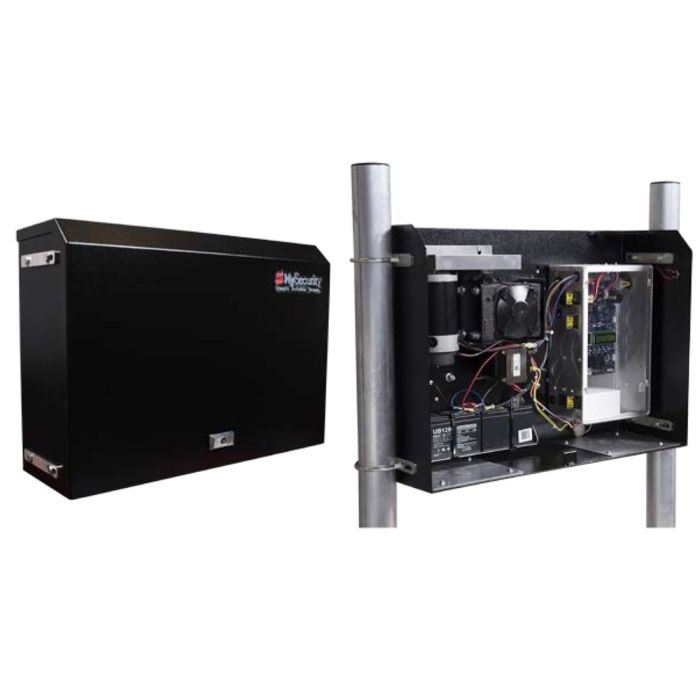

HySecurity Gate SLGO HD cycles up to 1,500lb/50ft

The SlideSmart DC HD15F is a heavy-duty commercial/industrial slide gate operator from HySecurity, engineered to move big, heavy gates reliably. This "Fast" model handles gates up to 1,500 lb (680 kg) and up to 50 ft (15 m) in length, delivering 300 lb of pull force with a continuous duty cycle for demanding applications.

Built around HySecurity's best-in-class Smart DC controller, the unit runs on 24VDC with integrated battery backup, so your gate keeps moving after a power loss—up to 4,000 ft on standard batteries and up to 25,000 ft with extended batteries. The controller offers 70+ configurable settings, a 32-character LCD display with tact buttons, and an onboard event log for easy troubleshooting, and it can be field programmed to specific site requirements.

Housed in a rodent-proof, heavy-gauge steel enclosure with a zinc-rich primer and black powder-coated finish, the HD15F is pad mountable and supports quick, easy installation, including retrofitting similar profile operators out of the box. It works seamlessly with HySecurity accessories such as the HyNet Gateway for real-time security alerts and the Hy5B vehicle detector.

• Moves gates up to 1,500 lb (680 kg) and 50 ft (15 m); 300 lb pull force, continuous duty cycle
• 1 hp electromechanical drive with selectable travel speeds (1.75, 2 or 2.25 ft/s; open/close set independently)
• 24VDC operation with intelligent battery backup that monitors battery condition to maximize life
• Smart DC Controller with 70+ configurable settings, LCD display, onboard event log and S.T.A.R.T. software support
• Rugged, rodent-proof heavy-gauge steel enclosure; pad mountable with side mount posts
• Communication via USB, RS-232, RS-485, plus Ethernet/fiber using the optional HyNet Gateway
• Temperature rated -13º to 158º F; ETL Listed (UL 325); cycle tested to 500,000 cycles; 5-year warranty with product registration
