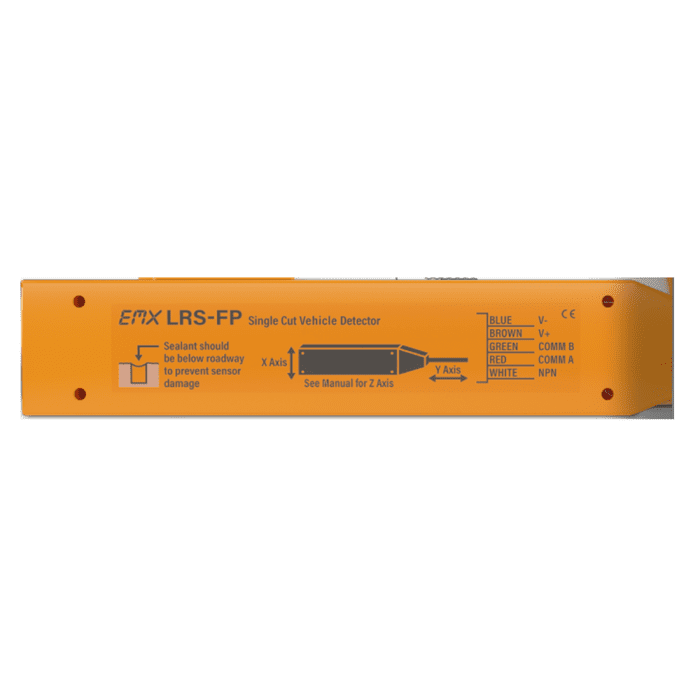

EMX Industries SENSOR ONLY - FLAT PACK W 50 FT LEAD

This is the Flat Pack sensor component of EMX Industries' Loop Replacement System (LRS), a single-cut magnetoresistive vehicle detector. Built on advanced 3-axis magnetoresistive sensing technology, it measures Earth's magnetic field and responds to disturbances caused by ferrous objects, with three sensing elements providing detection across the X, Y and Z axes for improved sensitivity. This Flat Pack version ships with a 50-foot lead for direct burial installation.

The compact, low-profile flat pack design allows for easy below-grade installation with a single saw cut, saving on labor and materials compared to the multiple cuts and corner reliefs required for inductive loops. The rugged sensor is also suitable for above-grade installations, making it ideal for confined areas or for concealment within non-ferrous architectural components for security purposes. (Note: this is the sensor only; an LRS control unit is required for programming and relay contact output.)

Typical applications include automatic gates and doors, drive-thru windows, car washes, parking and traffic monitoring, and loading docks.

• 3-axis magnetoresistive sensing measuring the X, Y and Z axes for high detection sensitivity
• Single-cut, low-cost direct burial installation; also suitable for above-grade use
• Includes a 50-foot lead with 5-conductor direct burial connection
• Polyamide (FP) housing with IP69K environmental rating
• Operating environment: -40°C to 82°C (-40°F to 180°F), 0–95% relative humidity
• NPN (open collector) output rated 50 mA; 12–30 VDC supply, 10 mA max current draw
• Backed by a 2-year warranty against defects in material and workmanship
