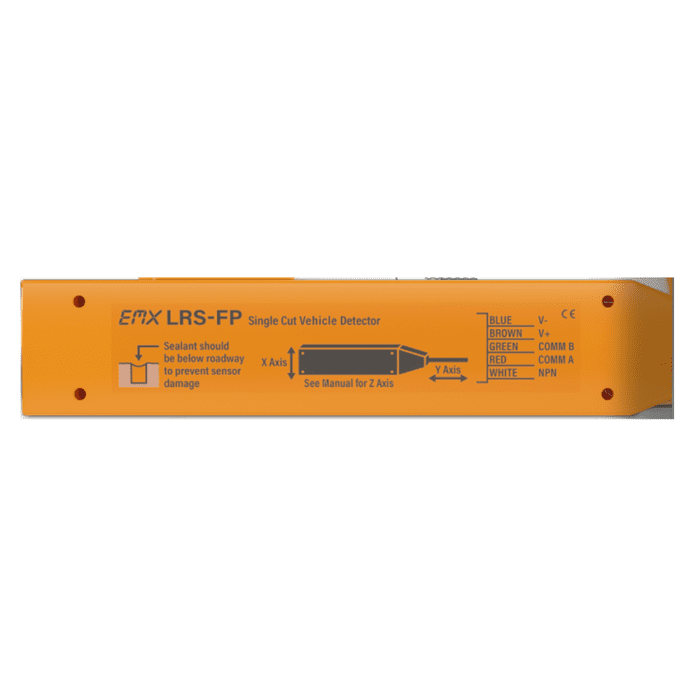

EMX Industries SENSOR ONLY - FLAT PACK W 100 FT LEAD

This is the flat pack sensor component of the EMX Loop Replacement System (LRS), supplied with a 100 ft lead for direct burial installation. Built around advanced 3-axis magnetoresistive sensing technology, it measures the Earth's magnetic field and responds to disturbances caused by ferrous objects, using sensing elements across the X, Y and Z axes for improved detection sensitivity. The result is a high-sensitivity, compact, and cost-effective solution for reliable vehicle detection.

The small size of the LRS flat pack sensor allows for easy below-grade installation in pavement with a single saw cut, providing savings on labor and materials compared with the multiple cuts and corner reliefs required for inductive loops. Its rugged construction also suits above-grade installations, making it ideal for confined areas or for concealment within non-ferrous architectural components for security purposes.

Typical applications include automatic gates and doors, drive-thru windows, car washes, parking and traffic monitoring, and loading docks. This is the sensor only; a control unit is required to complete the system.

• Flat pack direct burial sensor with 100 ft lead
• 3-axis magnetoresistive sensing technology with independent X, Y and Z axis selection
• Single-cut, low-cost installation suitable for below-grade or above-grade use
• Polyamide housing with IP69K environmental rating
• 5-conductor direct burial connection; NPN (open collector) output rated 50 mA
• Operating environment -40°C to 82°C (-40°F to 180°F), 0-95% relative humidity
• Compact and lightweight at 108mm x 22mm x 9mm and 27g (0.06 lbs.)
