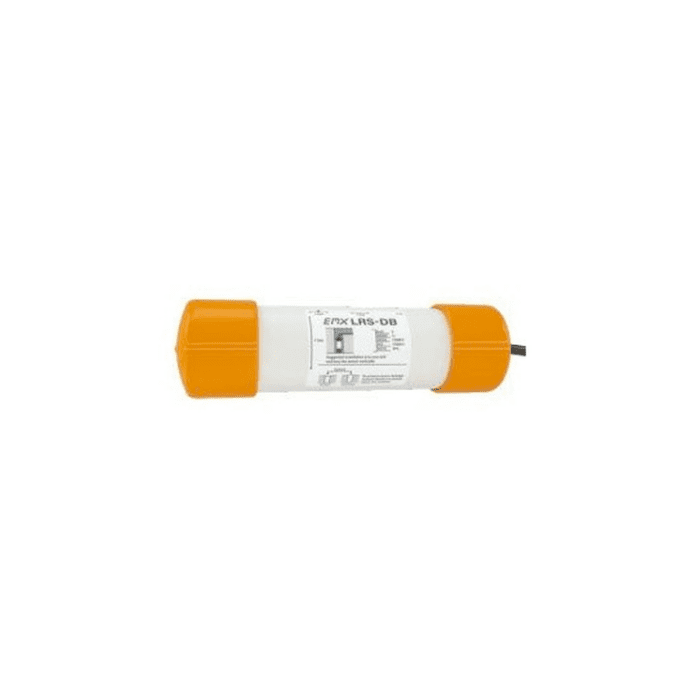

EMX Industries SENSOR ONLY - DIRECT BURIAL W 50 FT LEAD

This is the direct burial sensor component of the EMX Loop Replacement System (LRS), supplied with a 50-foot lead. The LRS uses advanced 3-axis magnetoresistive sensing technology to measure the Earth's magnetic field and respond to disturbances caused by ferrous objects. Three sensing elements provide magnetic field measurement in the X, Y and Z axes, improving detection sensitivity for reliable vehicle detection.

The compact sensor is designed for easy installation in pavement (below grade) with a single saw cut, offering cost savings on labor and materials compared to the multiple cuts and corner reliefs required for inductive loops. Its rugged construction also suits above-grade installations, making it ideal for confined areas or concealment within non-ferrous architectural components for security purposes.

Typical applications include automatic gates and doors, drive-thru windows, car washes, parking and traffic monitoring, and loading docks. This is the sensor only and operates as part of the LRS system with an LRS-C1 Control Unit.

• 3-axis magnetoresistive sensing technology with independent X, Y and/or Z axis selection
• Direct burial sensor with 50-foot, 5-conductor direct burial lead
• PVC housing with an IP69K environmental rating
• NPN (open collector) output, 50 mA
• Power supply 12-30 VDC; current draw 10 mA max
• Operating environment -40°C to 82°C (-40°F to 180°F), 0-95% relative humidity
• Backed by a 2-year warranty under normal use and service
