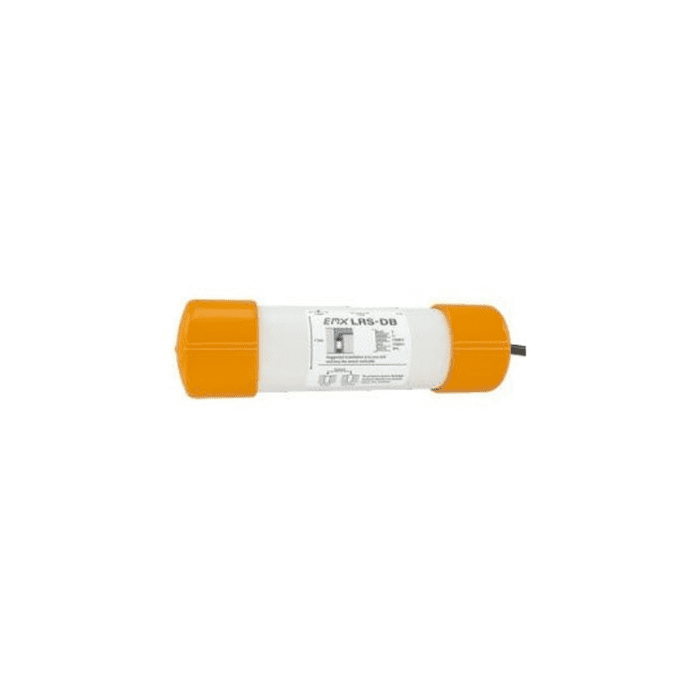

EMX Industries SENSOR ONLY DIRECT BURIAL W 100 FT LEAD

This is the direct burial sensor component of the EMX Loop Replacement System (LRS), supplied with a 100-foot lead. The LRS uses advanced 3-axis magnetoresistive sensing technology that measures the Earth's magnetic field and responds to disturbances caused by ferrous objects, with three sensing elements providing magnetic field measurement in the X, Y, and Z axes for improved detection sensitivity.

Designed as a high-sensitivity, compact, and cost-effective solution for reliable vehicle detection, the LRS sensor installs in pavement (below grade) with a single saw cut, saving on labor and materials compared to the multiple cuts and corner reliefs required for inductive loops. The rugged sensor is also suitable for above grade installations, making it ideal for confined areas or hidden in non-ferrous architectural components for security purposes. It is well suited to automatic gates and doors, drive-thru windows, car washes, parking and traffic monitoring, and loading docks.

This direct burial sensor connects via a 5-conductor direct burial cable and works with the LRS control unit for programming and relay contact output.

• 3-axis magnetoresistive sensing technology (X, Y, Z axes)
• Direct burial probe with 100-foot lead; 5-conductor direct burial connection
• NPN (open collector) output rated 50 mA
• Operating environment: -40°C to 82°C (-40°F to 180°F), 0-95% relative humidity
• PVC housing with IP69K environmental rating
• Powered by 12-30 VDC; 10 mA max current draw
• Backed by a 2-year warranty against defects in material and workmanship
