Linear Receiver-1 channel 300MHz

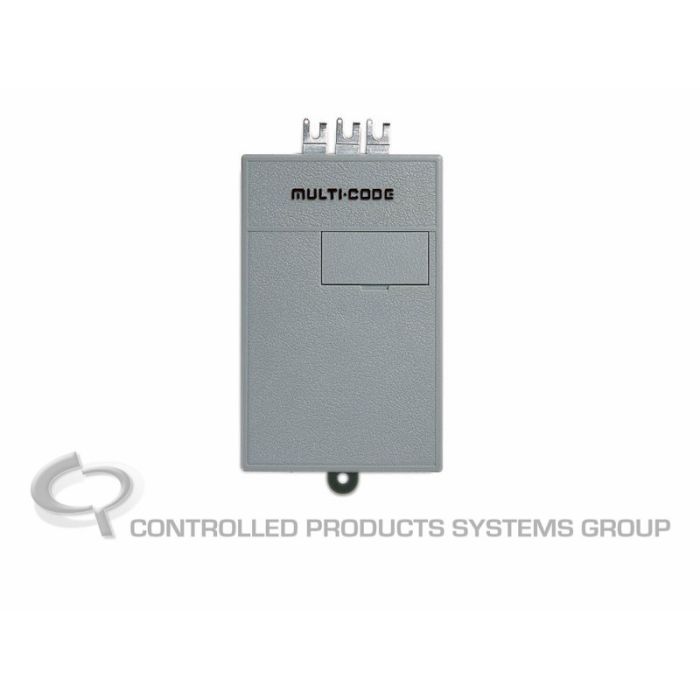

The Linear Receiver-1 channel 300MHz (SKU MCS109020) is a garage door radio control receiver designed to work as part of a transmitter/receiver combination for remotely controlling a garage door. Built around Linear's MULTI-CODE scheme, it supports the selection of as many as 1024 code combinations of the owner's personal choice, with the digital code determined by the position of 10 small switches numbered 1 through 10 located in both the receiver and matching transmitter.

The receiver is designed to mount directly to the operator by inserting its two-way lugs under the terminal screw heads, or it can be remotely installed near the operator head on a joist or ceiling using the mounting tab when the operator terminal strip is not accessible or power is not obtainable from the operator. An 11 inch white wire antenna should be placed in a vertical position as far from any metal as possible. The RF frequency is tuned and tested at the factory and requires no field adjustment.

It is well suited for new installations as well as adding or replacing a receiver in an existing system, by specifying the Model Number and the RF frequency designated on the identification label. Code matching to the companion transmitter is accomplished by setting both switches to the same code.

• Single channel garage door radio control receiver operating at 300MHz
• MULTI-CODE scheme allows selection of up to 1024 code combinations
• Digital code set via 10 switches (numbered 1-10) that must match the companion transmitter
• Direct-mounts to the operator with two-way lugs, or remote mounts using the mounting tab
• Includes an 11 inch white wire antenna for vertical positioning away from metal
• Factory-tuned RF frequency requires no field adjustment
• Remote installation supported with optional Model 1092-06 adapter or Model 1092-01 power transformer adaptor
