Seco-Larm U.S.A Pushbutton-momentary-built in timer

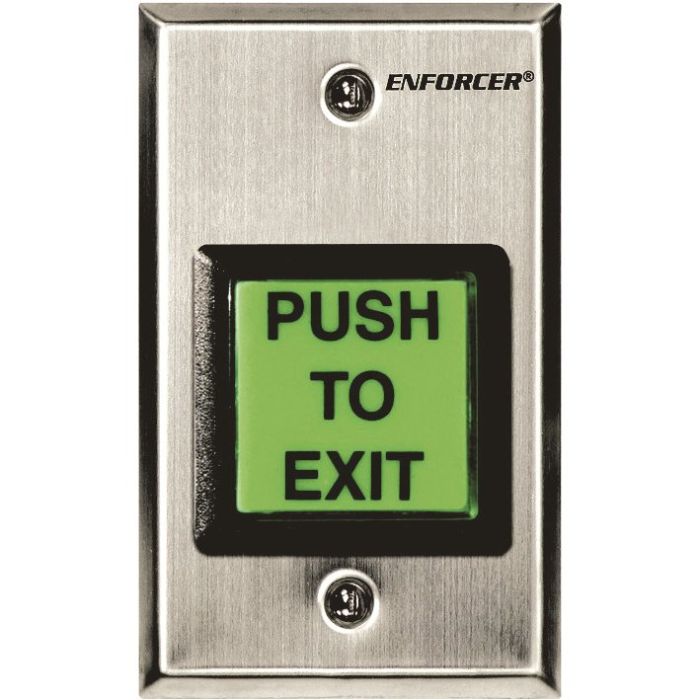

This illuminated Request-to-Exit (RTE) plate from Seco-Larm U.S.A, Inc. features a large, illuminated square push button captioned “PUSH TO EXIT.” The caption can be easily changed in the field to “PRESIONE PARA SALIR,” making it adaptable for bilingual installations. This model (SD-7202GC-PTQ) is a stainless-steel single-gang plate that includes a built-in timer.

Designed for fast, reliable installation, the unit includes five colored 12” wire leads with easy-to-attach spade lugs. The push button supports both normally open (N.O.) and normally closed (N.C.) wiring, making it a versatile choice for gate, access-control, and door-release applications by contractors and property owners alike.

• Large, illuminated push button captioned “PUSH TO EXIT,” field-changeable to “PRESIONE PARA SALIR”
• Push button rated 30A@24VDC for the SD-7202GC-PTQ
• Built-in timer with activation time adjustable from 1~180 seconds
• Includes five colored 12” wire leads with easy-to-attach spade lugs for fast installation
• Stainless-steel single-gang plate
• Supports both N.O. and N.C. wiring (Blue/White, Green/White, White COM)
• Replacement bulb included
