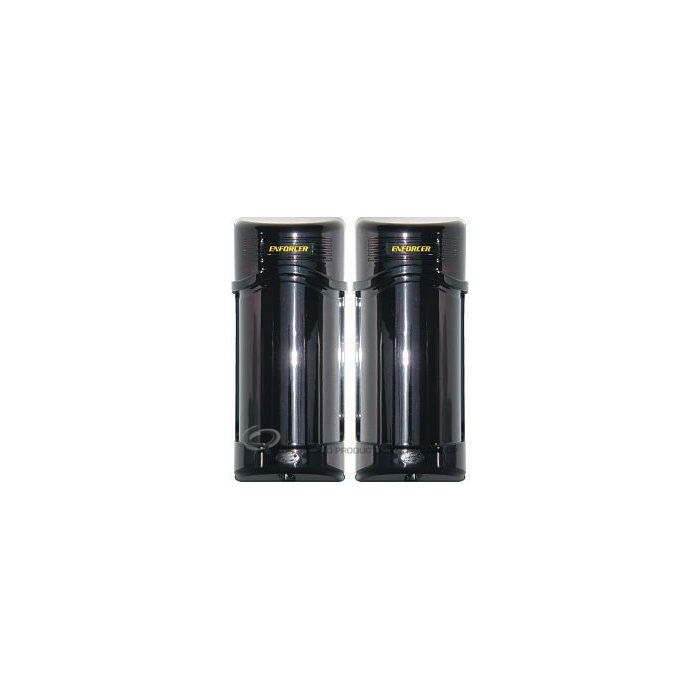

Seco-Larm U.S.A Photoeye-Twin photobeam 90' long range

The SECO-LARM E-960-D90Q is a twin photobeam detector designed to provide reliable perimeter security with an outdoor range of up to 90ft (30m) and an indoor range of up to 190ft (60m). Its dual-beam design minimizes false alarms caused by falling leaves, birds, and similar disturbances, while lensed optics reinforce beam strength for excellent immunity to false alarms from rain, snow, and mist.

Built for outdoor use, this detector features a weatherproof, sunlight-filtering case and an anti-frost system, making it well suited for property perimeters, driveways, gated entrances, and access-control applications. Non-polarized power inputs and automatic input power filtering with special noise rejection circuitry help ensure dependable operation, while NC/NO alarm output and an included NC tamper circuit support flexible integration.

Installation is quick and straightforward thanks to a built-in laser beam alignment system, and included "U" brackets allow for easy pole mounting.

• Outdoor range up to 90ft (30m); indoor range up to 190ft (60m)
• Twin beams with lensed optics for reliable detection and false-alarm immunity
• Weatherproof, sunlight-filtering case with anti-frost system
• Power: 10~30 VAC/VDC, non-polarized inputs
• NO/NC alarm relay output and N.C. tamper circuit included
• Built-in 650nm laser alignment system (output power
• Operating temperature -13°F (-25°C) to 131°F (55°C); "U" brackets included for pole mounting
