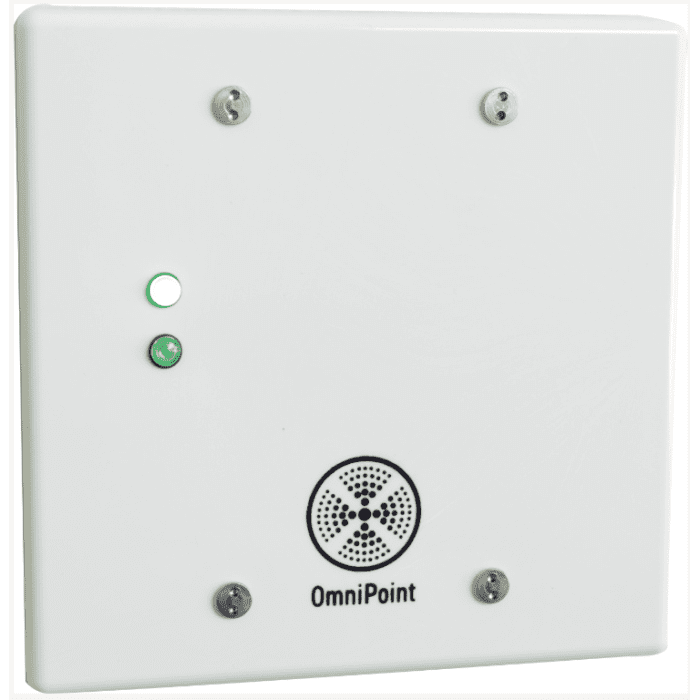

Cellgate OMNI Point EPM with PCB

The OMNI Point EPM with PCB is an Entry Point Module for CellGate's OmniPoint wireless multi-point access control system. As part of the OmniPoint hub-and-spoke architecture, the EPM connects entrances to a central Gateway using LoRa technology, eliminating the need for long-distance data wiring. The only wiring required is for power and the local connections to the card reader and lock.

Designed for cost-effective, reliable installation, the EPM works with any 26-bit Wiegand device and can store codes with common restrictions right at each entrance. It draws from your existing lock power source and fits in a standard double-gang size, making it a practical choice for contractors looking to reduce labor costs and avoid extensive data-wiring infrastructure across a property.

A single Gateway can control up to 100 entry points, and EPMs can be tested and registered to individual doors via the CG Installer app using QR codes. The OmniPoint system is managed through CellGate's TrueCloud portal, supporting credential management, activity logs, and time/date restrictions.

• Entry Point Module for the OmniPoint wireless access control system
• No data wires needed — communicates with the Gateway via LoRa
• Works with any 26-bit Wiegand device
• Can store codes with common restrictions at each entrance
• Uses existing lock power source: 12V DC or 24V AC
• Fits in a standard double-gang size
• Internal or external antenna options available
