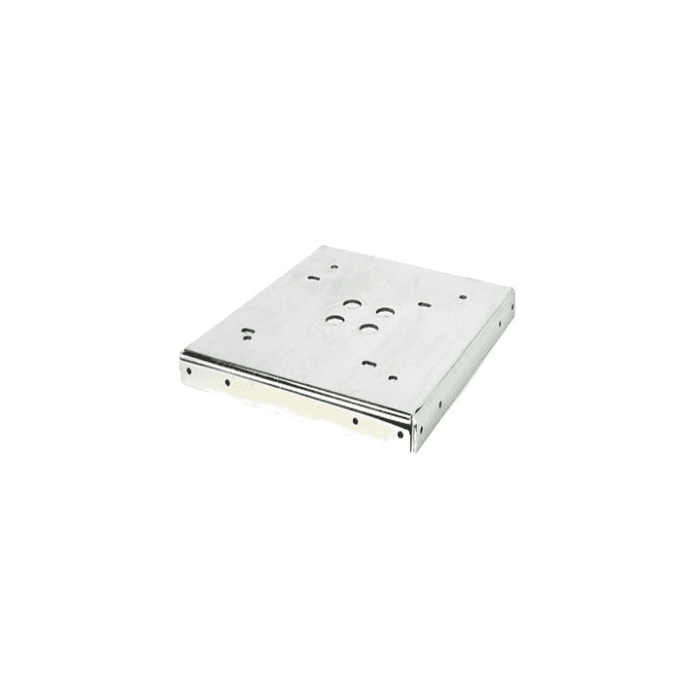

Liftmaster Mounting Plate for Post Mounting
The Liftmaster Mounting Plate (Model #MPEL) is a post-mounting plate designed for use with the CSW200UL Series and SL3000UL Series gate operators. It provides a level, secure mounting base that attaches to posts cemented into the ground, allowing the operator to be installed in a stable post-mounted configuration.
The plate supports multiple installation types to accommodate different post setups, including 3" posts mounted on the outside, 3" posts mounted on the inside, and 4" square posts welded on the inside. It features dedicated mounting holes and conduit holes so power and control wiring can be run in separate conduits as required.
This plate is intended for contractors and property owners installing post-mounted gate operators where proper post spacing, leveling, and secure anchoring are critical. Posts must be cemented in place, with depth determined by soil conditions and local codes.
- Compatible with CSW200UL Series and SL3000UL Series gate operators
- Supports three installation types: 3" posts on outside, 3" posts on inside, and 4" square posts welded on inside
- Includes mounting holes and conduit holes for organized wiring
- Designed to allow power and control wiring to be run in separate conduits
- Requires posts to be cemented in place; plate must be installed level
- Note: 3" O.D. heavy-walled posts, U-bolts, and 4" O.D. heavy-walled square posts are not provided
| SKU | MPEL |
|---|---|
| Manufacturer | Liftmaster |
| Prop 65 | ⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
