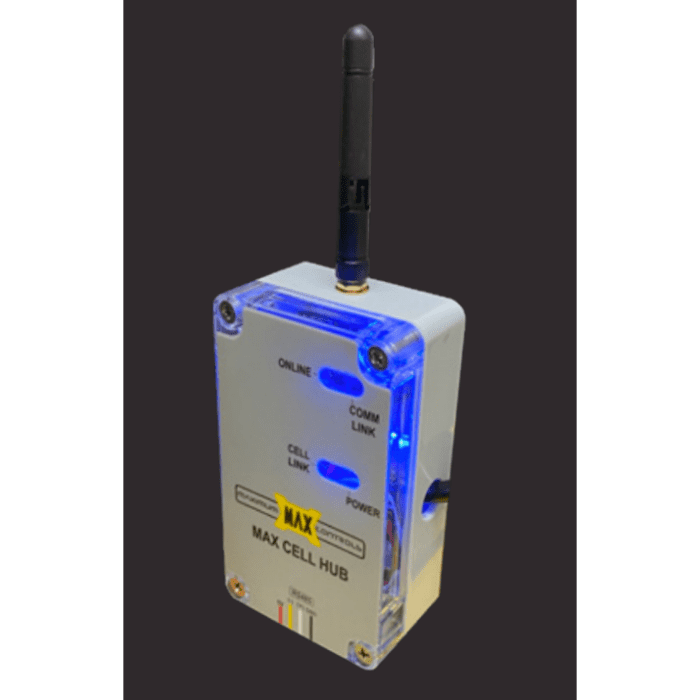

Maximum Controls MAX CELL HUB

The MAX CELL HUB from Maximum Controls, LLC brings app-based access control to MAX gate operators. Using the cloud-based Max Cloud App, it lets contractors and property owners open, close, monitor, and manage their gates from a smartphone or tablet—eliminating the need for a conventional large control box to manage access points.

Built for reliability, the hub uses cellular data connectivity (AT&T or Verizon) for low-latency commands issued through a dedicated cloud server, typically within a second. Because it relies on cellular data rather than WiFi or text messaging, it avoids the range limitations and unpredictable delays of those alternatives. Real-time security alerts, an Event Log, and an Error Log give managers visibility into gate site activity and operator diagnostics, all from within the app.

Ideal for residential and commercial sites, the MAX CELL HUB supports trackable keycodes and virtual transmitters with time restrictions, temporary Guest Passes, Auto Open/Close timers, and multiple gate sites managed individually. It is easy to install—simply plugged into the "Module Port" of the Matrix III or DSP Arm board—and works exclusively with Max operators (Max PRO series / Actuators), compatible with Max Operators except the Phantom F6 and 2000 Plus.

• Cloud-based Max Cloud App control via smartphone or tablet—no website portal required
• Cellular data service through AT&T or Verizon for reliable, low-latency commands
• Works on battery backup and supports up to 16 RS485 peripheral devices, including Max Keypads and the Max Wiegand Converter
• Event Log and Error Log (last 20 errors) for remote tracking and operator diagnostics
• Supports over 10,000 virtual transmitters plus Guest Passes and users with optional time restrictions
• 7-day Auto Open/Close timer and real-time security/text alerts for gate events
• Easy install into the Module Port of the Matrix III or DSP Arm board; Made in USA
