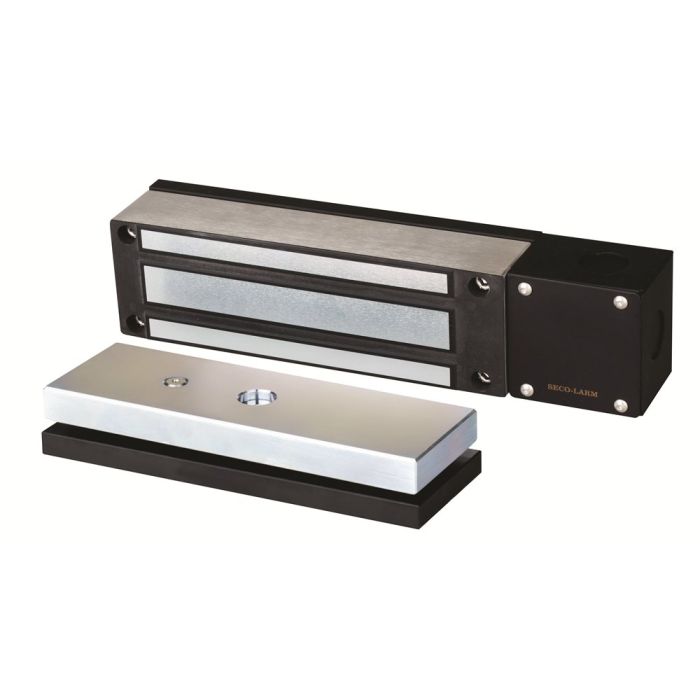

Seco-Larm U.S.A Maglock-1200LB w/weldable brackets
This electromagnetic lock from Seco-Larm U.S.A., Inc. is designed for outdoor sliding and swinging electric gates, delivering a holding force of 1,300 pounds (591 kg). Built with a maintenance-free, factory-sealed design, it is both water and vandal resistant, making it well suited for demanding exterior installations.
The kit includes brackets for both the armature and the magnet, which can be welded or bolted directly to the gate for installation flexibility. The brackets are zinc-plated for corrosion resistance and finished in black to match most gates, while the lock itself features an attractive stainless-steel finish. Mounting hardware, an adapter, and an included ST-1212-R1.0A 12VDC power supply help simplify setup for contractors and property owners alike.
- Holding force of 1,300 lb. (591 kg)
- Operating voltage: 12VDC or 24VDC (prewired for 12VDC operation)
- Current draw: 500mA at 12V, 250mA at 24V
- Brackets can be welded or bolted directly to the gate
- Zinc-plated, black-finish brackets for corrosion resistance and gate matching
- Water- and vandal-resistant, maintenance-free factory-sealed design
- Includes adapter, mounting hardware, and 12VDC power supply; CE certified (magnetic lock only)
| SKU | E-942FC-1K3SQ |
|---|---|
| Manufacturer | Seco-Larm U.S.A, Inc. |
| Prop 65 | ⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
