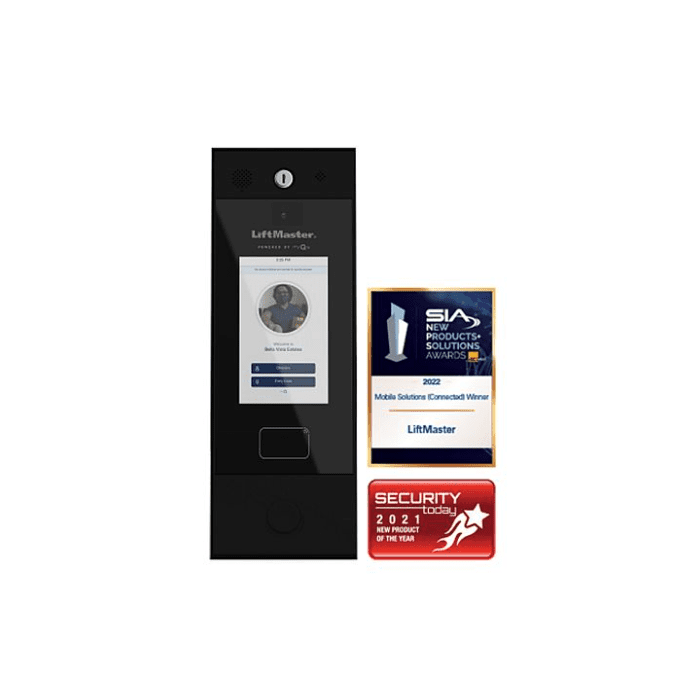

LiftMaster Smart Video Intercom - M

The LiftMaster Smart Video Intercom - M (Model CAPXM) is a cloud-based access control solution with an integrated video camera that enables advanced video features. Managed through a myQ® Business™ account, it combines a touchscreen display, speaker, microphone, and camera in a carbon steel and aluminum enclosure built for exterior installation.

The unit controls up to 2 access points through its Door Board, with relay outputs for gated operators, door strikes, maglocks, lights, and alarm shunt. It supports wired and wireless gate access, door access, RFID/card readers, Wiegand input and output, and a provision for a postal lock. A built-in LiftMaster Passport receiver provides Security+ 2.0® wireless communication to compatible LiftMaster gate operators.

Designed for property owners and installed by qualified professionals, the CAPXM connects via 10/100 Ethernet or 2.4 GHz Wi-Fi® and is intended for commercial and multi-site access control at gates and entry doors.

• Cloud-based access control with integrated 1080p video camera, 135-degree diagonal viewing angle, and local storage for up to 1,000 30-second temporary video events
• Controls up to 2 access points via Door Board with 2 primary and 2 auxiliary SPDT relay outputs (rated 3A at 30VDC each)
• Two Wiegand inputs supporting 26-bit, 30-bit, 32-bit MiFare, and 37-bit formats (only 26-bit is UL-compatible)
• Built-in LiftMaster Passport receiver with Security+ 2.0® wireless to gate operators up to 750 feet (line-of-sight)
• Network connectivity via 10/100 Ethernet and Wi-Fi® 802.11b/g/n at 2.4 GHz (WPA3/WPA2 Personal)
• 24VDC, 60W (minimum) Class 2 power supply; operating temperature -20°F to 130°F
• Capacity for 50,000 residents and 50,000 local event history entries
