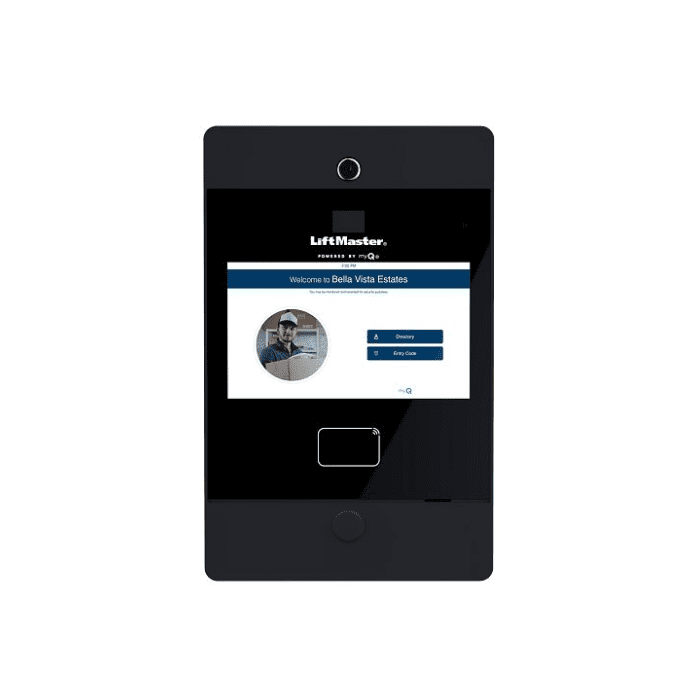

LiftMaster Smart Video Intercom L

The LiftMaster Smart Video Intercom L (CAPXL V2) is a cloud-based, commercial-grade video intercom designed for property managers and residents to streamline access management across doors, elevators, garages, and gated entry points. Built around a durable 10-inch, 720p high-definition, fade-resistant capacitive touchscreen with picture-in-picture functionality, it delivers a modern entry experience while capturing video for every access event.

With the required myQ Community subscription, managers can control and monitor multiple entrances and communities from a single dashboard—adding or removing residents, assigning access to specific entrances, setting schedules by person, time, and location, and receiving real-time notifications and remote diagnostics. The myQ Community app gives residents one-way video calling and two-way voice communication to identify and grant or deny access from anywhere, while myQ Mobile Credentials turn a smartphone into an encrypted all-access pass and allow virtual guest or delivery passes for one-time or recurring use.

Engineered for demanding installations, the unit carries IP54 weather-proof and IK07 impact-proof ratings, is UL 294 listed for commercial settings, and includes a built-in Security+ 2.0 radio that wirelessly links to compatible LiftMaster gate operators—eliminating trenching. It integrates with property management systems including RealPage and Yardi for automatic tenant directory uploads.

• 10-inch, 720p high-definition, fade-resistant capacitive touchscreen with picture-in-picture
• Integrated camera with 135° field of view, 1080p resolution, 25 FPS, and night vision
• IP54 weather-proof and IK07 impact-proof; UL 294 listed; operating range -20°F to 130°F
• Controls up to 8 gates/doors; built-in Security+ 2.0 radio links wirelessly to compatible LiftMaster gate operators (no trenching)
• 50,000 local user capacity and 50,000 local event history per unit; stores up to 1000 events locally and in the cloud
• Connects via wired Ethernet, Wi-Fi, or PoE; built-in myQ Mobile Credentials via BLE; two-factor authentication and CCPA compliance
• Includes 24VDC power supply, gasket set, 2 keys, hardware, and manual; 2-year warranty (myQ Community subscription required)
