EMX Industries LD Single Channel 9-240VAC/DC

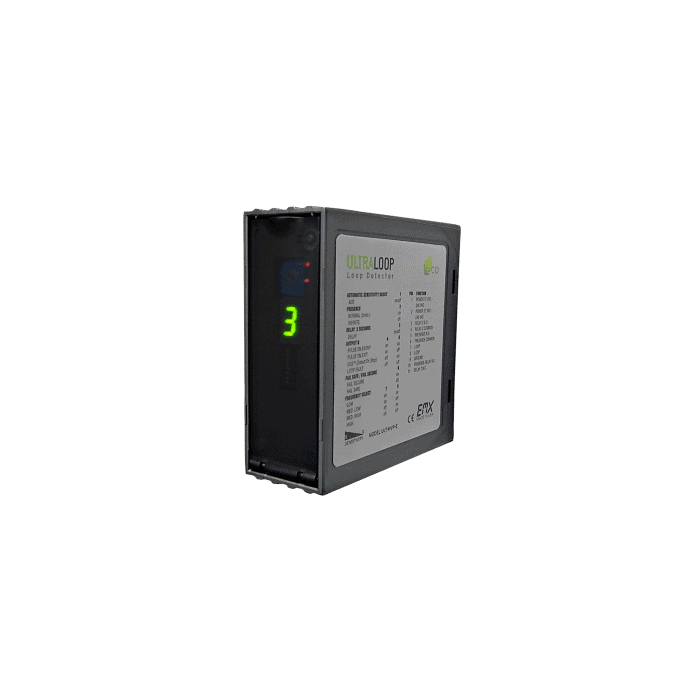

The EMX ULTRALOOP® ULT-MVP is a multi-voltage vehicle loop detector that combines a compact footprint with a wide input range, operating on 12–60 VDC or 12–240 VAC (48–62Hz). Its small size lets it fit into tight operator housings, making it well suited for gate, access-control, and garage-door applications where space is limited.

This detector provides relay contact outputs indicating vehicle presence, plus a second set of contacts that can be configured for loop fault, pulse on entry/pulse on exit, or Detect-On-Stop™ (DOS®). The exclusive DETECT-ON-STOP™ feature allows detection only when a vehicle has come to a complete stop on the loop—a major advantage when you want to ignore cross traffic in tight spaces.

Setup and troubleshooting are simplified by the ULTRAMETER™ sensitivity display, which indicates the appropriate sensitivity setting with a vehicle positioned on the loop. A crosstalk and RFI interference display helps identify interference problems, while 10 sensitivity settings and 4 frequency selections give fine adjustment and flexibility for multi-loop installations.

• Multi-voltage input: 12–60 VDC and 12–240 VAC (48–62Hz)
• ULTRAMETER™ display with 10 sensitivity settings and 4 frequency selections
• Dual outputs: presence relay plus configurable Output B (loop fault, pulse entry/exit, or DOS)
• Exclusive DETECT-ON-STOP™ (DOS®) and Automatic Sensitivity Boost (ASB) features
• Compact size 73 x 38 x 78mm, low current draw (20mA standby / 50mA detect)
• SPDT (form C) relay contacts rated 2A @ 30VDC, 0.5A @ 125VAC
• 11-pin male socket mount, ABS plastic housing (IP30), backed by a 2-year warranty
