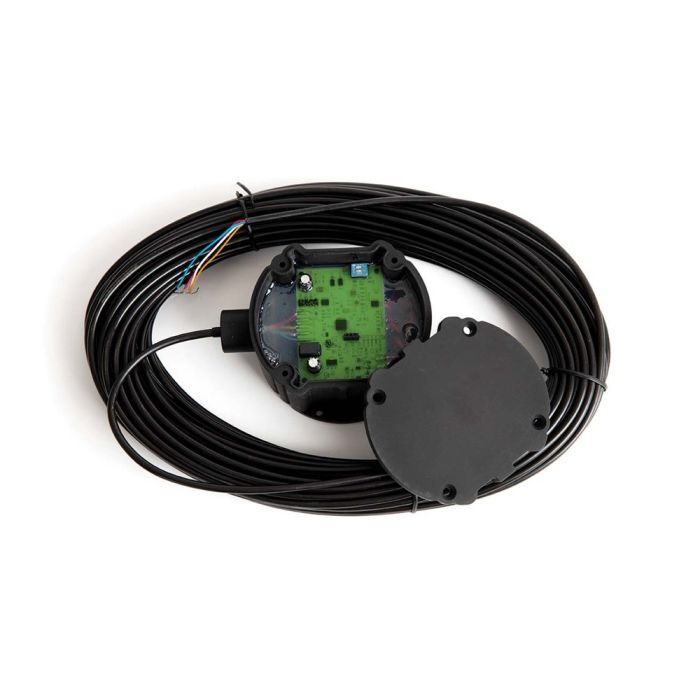

Cartell Free Exit System w/ 100ft Lead

The Cartell CP-4 is a self-contained, wired free exit system that opens automatic gates for a seamless, hands-free exit. There's no need for key fobs, remotes, or keypads—as a vehicle approaches, the system signals the gate operator to open. It connects directly to the free exit terminals in your gate operator, with no external output board required.

Powered by magnetometer technology, the CP-4 detects only moving steel, helping to eliminate false opens. Its universal voltage support and selectable N/O or N/C relays make it compatible with power and solar gate operators, while its conduit-ready housing and industry-standard wire colors simplify installation. The unit ships with a 100 ft lead, and longer 200 ft, 300 ft, and 500 ft cables are also available.

With a rugged, weather-resistant design rated IP68, plus heat resistance and lightning protection, the CP-4 is built for demanding outdoor environments. Its low standby current makes it especially well-suited to solar applications, reducing battery maintenance.

• Self-contained system with conduit-ready housing—hooks directly to gate operator free exit terminals
• Magnetometer technology detects only moving steel to help prevent false opens
• Universal voltage: 8–24 VAC / 8–30 VDC, with sensitivity adjustment
• SPDT floating relay contacts, N.O. or N.C. (Form C); relay time 2–3 seconds
• IP68 rated, heat resistant, with lightning protection and weather-resistant cable
• Includes 100 ft cable; weighs 5 lbs (2.27 kg); operating range -25°F to 140°F
• Backed by a five-year warranty against defects in material and workmanship
