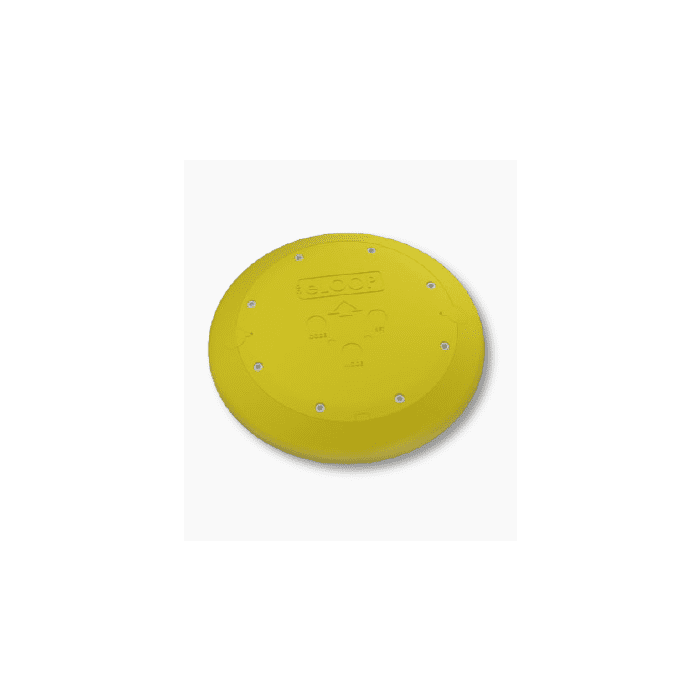

AES Global e-Loop Commercial Radar Loop only

The e-Loop Commercial Radar Loop is a wireless vehicle detection device from AES Global, designed to be installed in the ground and paired with an AES e-Trans transceiver. It uses radar-based detection to register vehicles without the need for cutting traditional inductive loops into the surface.

The unit secures into the ground using two concrete fixing bolts and communicates wirelessly with a compatible transceiver such as the e-Trans 50 or e-Trans 200 LCD. Coding can be performed either by holding the device near the transceiver antenna or, on commercial systems, by using a magnet on the CODE recess. Calibration is carried out with a magnet via the SET button recess, with LED indicators confirming pairing, calibration, and any radio range or connection errors.

It is suited to gate and access-control applications requiring reliable wireless vehicle detection. The e-Loop operates in pulse mode by default, with presence mode and additional parameters configurable through the e-Trans 200 LCD transceiver. Note that presence mode is not to be used as a sole safety device and should be used alongside standard gate safety practices.

• Operating frequency of 433.39 MHz with 128-bit AES encryption
• Wireless range of up to 50 yards
• Battery life of up to 10 years using 4 x Lithium-ion 3.6V 2600 mA batteries
• Ground-mounted installation secured with 2 concrete fixing bolts
• Magnet-based coding (commercial systems) and calibration via button recesses with LED status indication
• Default pulse mode; presence mode and parameters (sensitivity, radar detection distance, wake-up intervals) configurable via e-Trans 200 LCD
