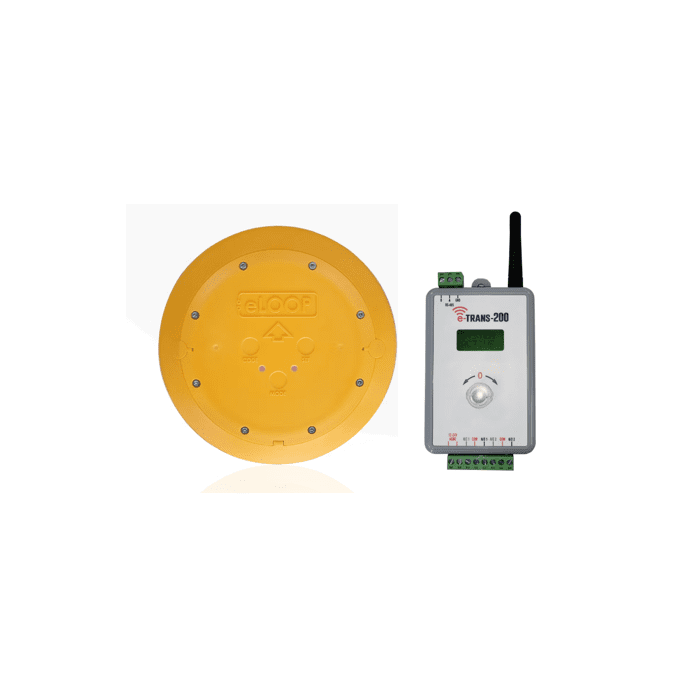

AES Global e-Loop Commercial Radar Loop kit

The AES Global e-Loop Commercial Radar Loop kit is a bidirectional wireless access control system designed for gate and door applications. It manages access control for commercial multi-unit complexes with up to 200 units, while also offering functions suitable for home systems.

Featuring simple menu functions with an LCD display, the system includes a high-sensitivity 433 MHz receiver and dual relay outputs that can be configured for Pulse, Hold, or Latch mode. A unique lock-out feature lets you lock out entry buttons, e-Loops, and keypads using the lock and unlock function on the e-Remote.

With 200 code storage and remote ID selection, the kit is ideal for unit applications, and its ultra-low standby power consumption makes it well suited for solar installations. A built-in test mode allows you to check relay outputs, radio signal strength, and radio interference.

• High sensitivity 433 MHz -126 dBm receiver with 20 dBm transmission output
• External SMA connector for connecting different antennas
• Wide input voltage range from 10V to 36V ACDC
• 2 relay outputs settable to Pulse, Hold, or Latch mode
• Selectable ultra-low standby power consumption of only 4.5 m/a, ideal for solar applications
• 200 code storage with remote ID selection and ability to delete individual remote devices
• Unique lock-out feature controlled via the e-Remote
