Cartell DUAL-PURPOSE ALARM & FREE EXIT SYSTEM

The Cartell CW-SYS is a wireless dual-purpose driveway system that combines a driveway alarm with an automatic gate opener. It integrates with any security or home automation system to create a safety zone in your driveway, alerting you to drive-up visitors, while also opening any powered gate operator for a convenient, hands-free exit.

At the heart of the system is a self-contained sensor "puck" powered by magnetometer technology with adjustable sensitivity. It is tripped only by moving steel—not motion, heat, or pressure—to help eliminate false alarms. A redundant two-way radio at 915MHz using the LoRa protocol helps guarantee the signal reaches the receiver. Installation is fast and trenching-free, with no external transmitter or antenna required, and the sensor can be mounted above ground on an immovable object, in the ground, or in the driveway itself.

The CW-SYS suits a wide range of driveways: install a single unit in the middle of short driveways with reduced sensitivity, or use multiple units spaced apart or on both sides for wide driveways. Multiple sensors can easily be paired with multiple Integrators. Note: this product should not be used for free exit with solar gates.

• Dual-purpose: activates security/home automation systems and opens any powered (non-solar) electric gate operator
• Magnetometer sensing with adjustable sensitivity—triggered only by moving steel for no false alarms
• Fail-safe redundant two-way 915MHz LoRa radio; estimated range up to 2,500 ft. above ground or up to 1,000 ft. flush with ground (line of sight, no obstructions)
• Universal AC and DC voltage compatibility
• Durable IP68-rated sensor with a 9-ton (8514 kgf) strength rating and a temperature range of -25°F to 140°F
• Estimated 1-3 year battery life using two CR123A batteries, with an extra relay for a low-battery signal

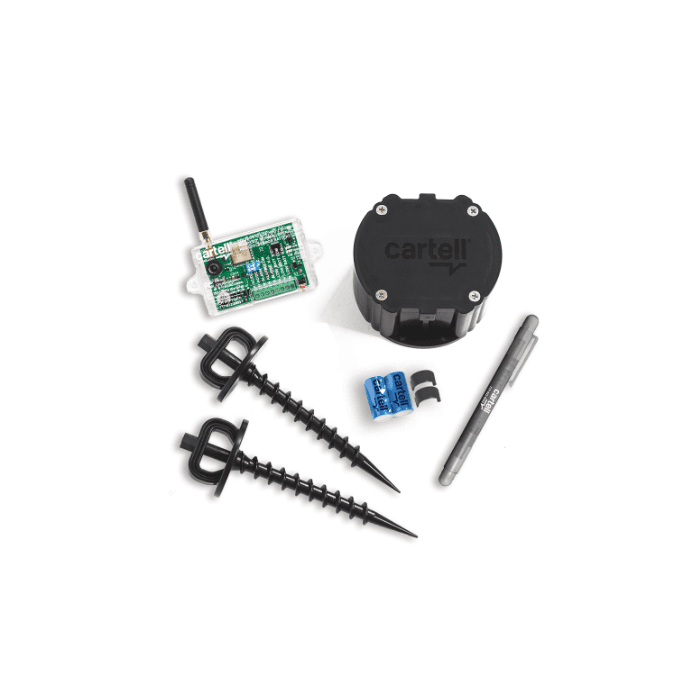

• Installs in under 1 hour on average with no trenching; includes sensor puck, Integrator, auger screws, batteries, and screwdriver
