EDI Detector-1 Channel-2 Relay-12-24VDC

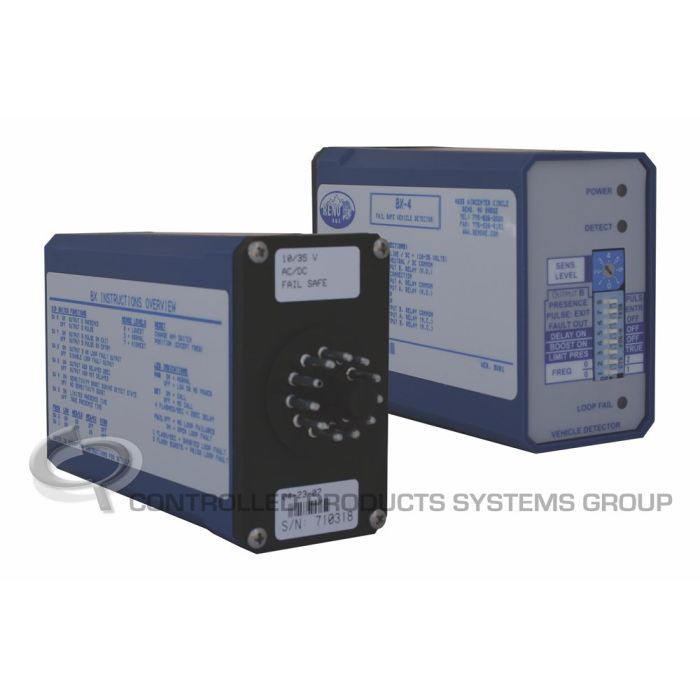

The EDI BX-4 is a full-featured, single channel, dual output vehicle detector built on Reno A&E's reliable vehicle detection technology. This version (BX-4) operates on 12 VDC, 24 VDC, or 24 VAC input power, making it well suited for gate, access-control, and garage-door installations. All detector functions and settings are easy to configure using a set of eight external DIP switches and a simple-to-use eight-position rotary switch.

The detector provides two independent relay outputs. Output A offers selectable presence hold times—True Presence™ or Limited Presence—while Output B can be configured for Presence, Pulse-on-Entry, Pulse-on-Exit, or Fault indication. With eight levels of sensitivity, a Sensitivity Boost option for high-bed vehicles, four loop frequencies, and automatic self-tuning, the BX-4 adapts to a wide range of loop installations and operating conditions.

Built for demanding environments, the BX-4 features a high temperature rated plastic enclosure, conformal-coated circuit boards, and transformer-isolated loop inputs for dependable operation even with poor-quality or grounded loops. Fail-Safe and Fail-Secure versions are available to match your access-control requirements.

• Single channel, dual output vehicle detector; BX-4 operates on 10 to 16 VDC, 20 to 34 VDC, or 18 to 32 VAC input power
• Eight selectable sensitivity levels plus Sensitivity Boost to help prevent dropouts during high-bed vehicle passage
• Output A: True Presence™ or Limited Presence; Output B: Presence, Pulse-on-Entry, Pulse-on-Exit, or Fault output
• Four selectable loop frequencies; loop inductance range of 20 to 2000 microhenries; loop feeder length up to 2500 feet (762 m)
• Relay outputs rated for 6.0 amps continuous, 300 VAC max, 150 VDC max, and 180 Watts maximum switched power
• Detect Memory maintains detection during momentary power interruptions of up to two seconds; two-second call delay selectable
• Rugged construction with conformal-coated FR4 boards; operating temperature -30°F to +180°F; rear-mounted 11-pin Amphenol connector
