EDI Det.1 Ch 2-relay 120vac

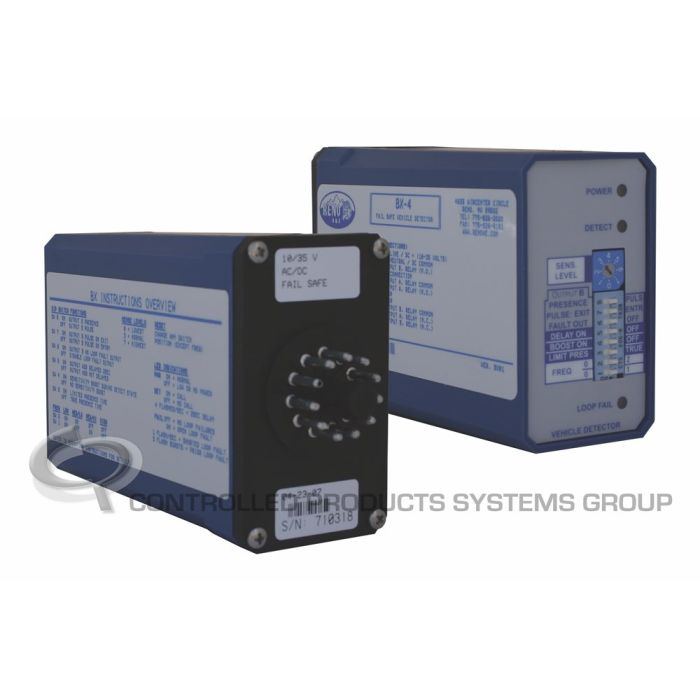

The EDI BX-3 is a full-featured, single channel, dual output vehicle detector from Reno A&E's BX Series, configured for 120 VAC input power. It incorporates reliable inductive-loop vehicle detection technology and is well suited for gate, access-control, and parking applications where dependable vehicle sensing is required.

All detector functions and settings are easy to configure using a set of eight external DIP switches and a simple eight-position rotary switch. Output A provides Limited Presence or True Presence™ detection, while Output B can be set for Presence (duplicating Output A), Pulse-on-Entry, Pulse-on-Exit, or Fault output. The detector self-tunes and is operational within two seconds of power-up, with full sensitivity and hold time after 30 seconds of operation, and is fully self-compensating for environmental changes and loop drift.

The unit features clear LED indication for power, detect, and loop-fault status, a Sensitivity Boost mode to prevent dropouts during the passage of high-bed vehicles, and a Detect Memory feature that maintains detection during momentary power interruptions of up to two seconds. Fail-Safe and Fail-Secure versions are available.

• 120 VAC input power (89 to 135 VAC), 4 Watts maximum
• Dual relay outputs rated for 6.0 amps continuous, 300 VAC max, 150 VDC max, 180 Watts maximum switched power
• Eight selectable sensitivity levels plus Sensitivity Boost, and four selectable loop frequencies
• Loop inductance range of 20 to 2000 microhenries; loop feeder length up to 2500 feet (762 m) with proper cable and loops
• Two-second Call Delay for Outputs A and B, and Detect Memory through power interruptions up to two seconds
• Ruggedized construction with conformal-coated FR4 boards; operating temperature -30°F to +180°F (-34°C to +82°C)
• Rear-mounted 11-pin Amphenol connector; size 3.00" H x 1.75" W x 4.30" D, weight 8.8 oz
