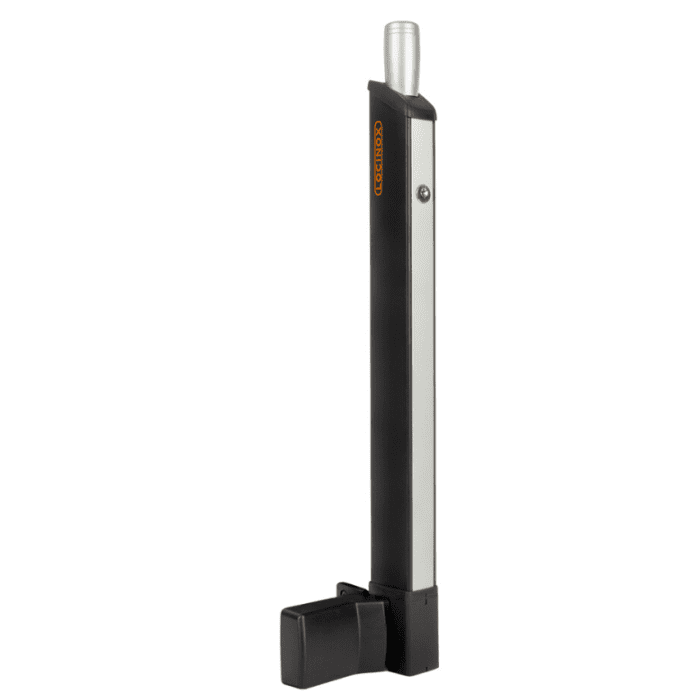

Locinox USA Child safe magnetic latch w/KIK Cylinder

The Child Safe Magnetic Latch with KIK Cylinder from Locinox USA, LLC is an access-control latch designed for gate installations. It is documented for use with TIGER and PUMA gate hardware and supports both left-turning and right-turning gate configurations.

This product includes the components and tools needed for installation, with drilling templates provided for both the gate side and post side to guide accurate hole placement. Mounting and adjustment are performed using the included Allen keys, and cover shields are placed once the installation tool is removed.

It is suited for gate applications where a child safe magnetic latching solution with a keyed cylinder is required, accommodating profile/gate thicknesses within the documented range.

• Compatible with TIGER gate closer and PUMA hinge installations
• Supports left-turning and right-turning gate mountings
• Documented for profile thickness of 10 to 25 mm (3/8" to 1")
• Package includes TIGER and PUMA cover shields, PUMA hinge, TIGER gate closer, and drilling templates
• Includes Allen keys (3 mm and 5 mm) for mounting and adjustment
• Uses Ø15 mm (Ø9/16") drilling locations per the supplied templates
• Specified minimum dimension of 145 mm (5-11/16")
