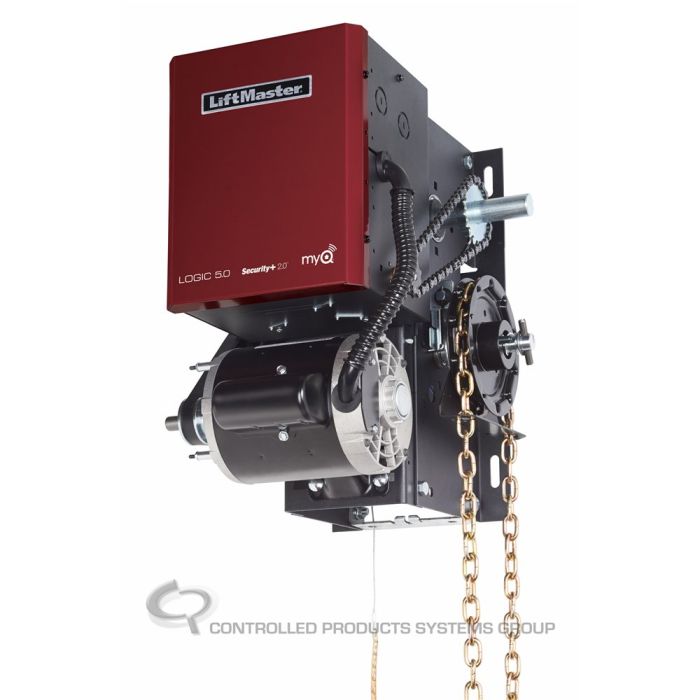

Liftmaster CDO Hoist 1/2HP 208/230/460 V 3ph RH

The LiftMaster H (Logic 5.0) Hoist Operator is a commercial-grade door operator built for rolling steel doors and grilles, as well as high or vertical-lift sectional overhead doors. It is recommended for standard duty-cycle commercial applications where a manual hoist is required, making it a dependable choice for contractors and property owners managing demanding access points.

This unit is rated for standard-duty operation of up to 25 cycles per hour and up to 90 cycles per day using a continuous-rated motor, with an operator speed of 8-9 inches per second. It features a Solid-State Logic 5.0 circuit board, mechanical limit settings, a programmable timer-to-close, and a floor-level emergency release sash chain with auto-reconnect when tension is removed. A 3-Button Control Station with Maintenance Alert System (MAS) provides convenient wall control.

With myQ Technology, the operator enables remote monitoring and control of the commercial door via smartphone, tablet, or computer (LiftMaster Internet Gateway and myQ app required). Its heavy-duty steel construction and integrated safety features make it well suited for everyday commercial use.

• For rolling steel doors/grilles and high or vertical-lift sectional overhead doors
• Standard-duty: up to 25 cycles/hour, up to 90 cycles/day; operator speed 8-9 inches per second
• Solid-State Logic 5.0 circuit board with mechanical limit settings and programmable timer-to-close
• 3-phase 208V/230V/460V dual voltage; LiftMaster Security+ 2.0 radio receiver
• Floor-level emergency release sash chain with auto-reconnect; standard adjustable friction clutch
• Heavy-duty 11-gauge steel frame with durable powder coat finish; NEMA 1 type electrical box
• myQ Technology for remote monitoring and control; 2-year warranty
