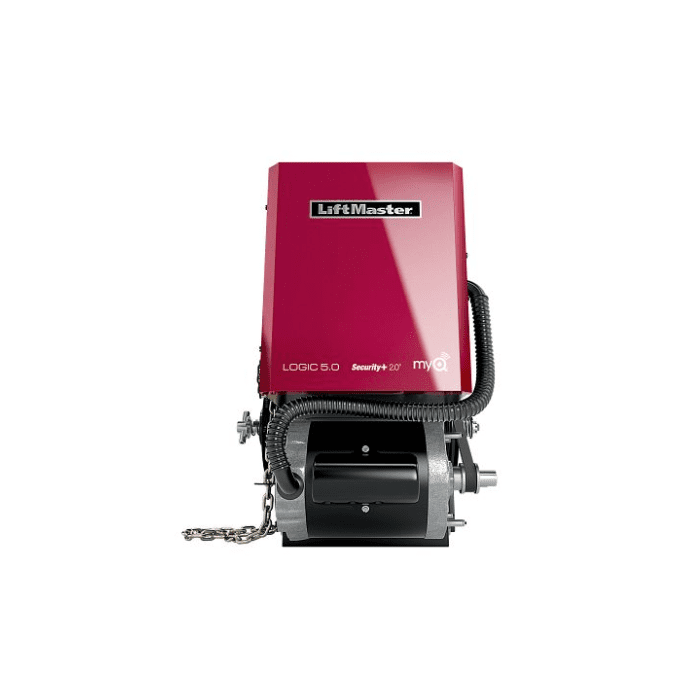

Liftmaster CDO Hoist 1/2hp 115/230V 1 ph R/H

The LiftMaster H (Logic 5.0) Hoist Operator is a commercial-grade hoist designed for rolling steel doors and grilles, as well as high-lift or vertical-lift sectional overhead doors. It is recommended for standard duty-cycle commercial applications where a manual hoist is required, delivering reliable performance for contractors and property owners alike.

Built around the solid-state Logic 5.0 circuit board, this operator offers programmable features including a timer-to-close, programmable mid-stop, and run-time protection via a maximum run timer. A floor-level emergency release sash chain provides manual operation and auto-reconnects when tension is removed. Programming is handled through a control function selector dial and tactile buttons, and the included 3-Button Control Station features a Maintenance Alert System (MAS).

Constructed with a heavy-duty 11-gauge steel frame and a durable powder coat finish, the operator is engineered for long-term commercial use. With LiftMaster Security+ 2.0 radio receiver and optional myQ Technology, the door can be monitored and controlled remotely from a smartphone, tablet, or computer.

• Standard-duty: up to 25 cycles/hour and up to 90 cycles/day with a continuous-rated motor
• Operator speed of 8-9 inches per second with mechanical limit settings
• Solid-state Logic 5.0 circuit board with programmable timer-to-close (1- and 15-second increments up to 68 minutes)
• Floor-level emergency release sash chain with auto-reconnect; standard adjustable friction clutch
• Industrial ball bearings on a 1" output shaft; heavy-duty 11-gauge steel frame, NEMA 1 electrical box
• Supports doors up to 22 ft wide, 26 ft high, and 640 sq. ft. maximum (standard, with additional capability)
• LiftMaster Security+ 2.0 radio receiver, optional myQ remote monitoring, and a 2-year warranty
