Liftmaster CDO Gearhead 1/2hp 208/260/460V 3ph

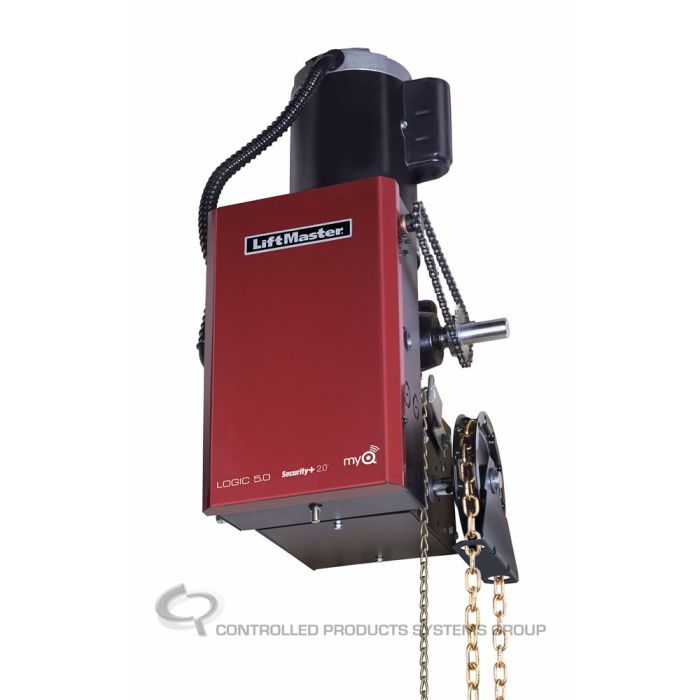

The LiftMaster GH (Logic 5.0) Gearhead Hoist Operator is a heavy-duty commercial door operator built for high-cycle environments. It is recommended for rolling steel doors and heavy, high- or standard-lift sectional overhead doors in demanding commercial applications, delivering an operator speed of 8-9 inches per second.

Engineered for reliability, this unit features a 45:1 first-stage heavy-duty gear reduction running in an oil bath within a cast iron housing, a #50 output sprocket chain, and sealed roller bearings in the gear reducer. The solid-state Logic 5.0 circuit board supports programmable features such as a timer-to-close, programmable mid-stop, maximum run timer, and a delay-on-reverse circuit. A standard brake, mechanical limit settings, and a floor-level emergency release sash chain with auto-reconnect round out its operational capabilities.

This operator includes a LiftMaster Security+2.0 radio receiver (backwards compatible to Security+ 315 or 390 MHz) and myQ Technology for remote monitoring and control via smartphone, tablet, or computer. Wall control is handled by a 3-Button Control Station with Maintenance Alert System (MAS). Note: this commercial door operator must feature constant pressure to close or be equipped with an external monitored entrapment protection device to meet UL 325 requirements.

• Heavy-duty rated: up to 25 cycles/hour and up to 125 cycles/day when distributed over a minimum of 8 hours
• Solid-state Logic 5.0 circuit board with programmable timer-to-close (1 and 15 second increments up to 68 minutes)
• 45:1 heavy-duty gears in oil bath, cast iron housing, #50 output sprocket chain, and sealed roller bearings
• NEMA 1 electrical box and heavy-duty 11-gauge steel frame with durable powder coat finish
• Standard brake, mechanical limits, and floor-level emergency release sash chain with auto-reconnect
• LiftMaster Security+2.0 receiver and myQ Technology for remote monitoring and control
• 2-year warranty; universal mounting up to 2 HP
