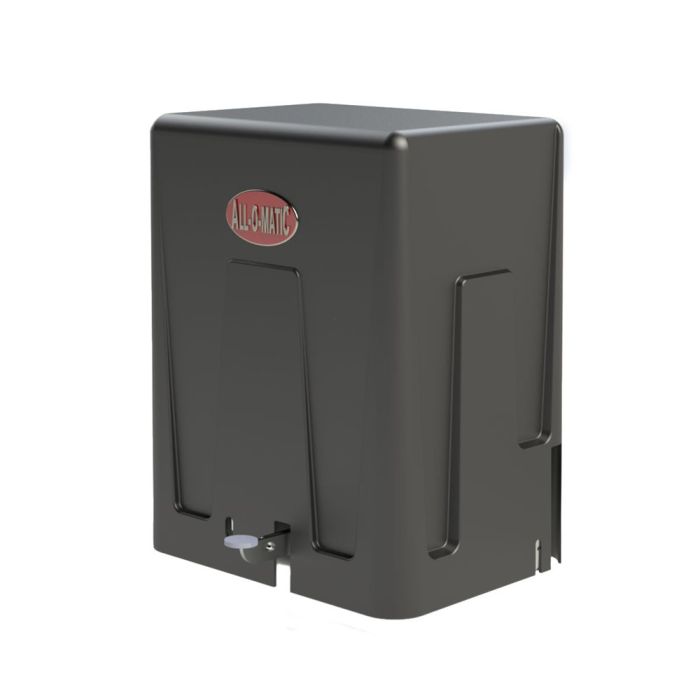

All-O-Matic 1 HP DC HD SLIDE GATE OPERATOR

The All-O-Matic SL-150DC PRO is a heavy-duty 1 HP DC slide gate operator built for demanding residential and commercial installations. Powered by a 24 VDC brushless motor with a continuous duty cycle, it is engineered to move gates up to 4,000 lbs. and 60 feet in length at an adjustable speed of 6" to 12" per second.

At the heart of the operator is the ALL-BLDC PRO control board, featuring an LCD display with on-board diagnostics, auto close timer, obstruction sensing, digital adjustments, and integrated wireless primary/secondary capability. A USB port allows you to extract diagnostic data and perform firmware updates, while the built-in volt meter and cycle counter help simplify maintenance and troubleshooting. The AOM-RED EYE is included.

Designed for sliders, the unit offers flexible power options including 115/230 VAC single phase and 24 VDC solar panel input, plus integrated battery backup for continued operation during power loss. A mechanical foot pedal release provides simple manual operation in an emergency, making this operator a reliable choice for gated properties, commercial entrances, and access-controlled facilities.

• 24 VDC brushless 1 HP motor with continuous duty cycle
• Handles gates up to 4,000 lbs. and 60 feet in length
• Adjustable gate speed of 6"–12" per second; 30:1 gearbox with internal clutch
• ALL-BLDC PRO control board with LCD display, on-board diagnostics, auto close timer, obstruction sensing, and USB port
• Power options: 115/230 VAC single phase and 24 VDC solar panel; integrated battery backup with (2) 7Ah 12VDC batteries
• Mechanical foot pedal emergency release; AOM-RED EYE included
• 7-year residential / 5-year commercial warranty; temperature range -40 to 160°
