Liftmaster 1.25HP DC, Cam, Ring LED, BBU, Wi-Fi

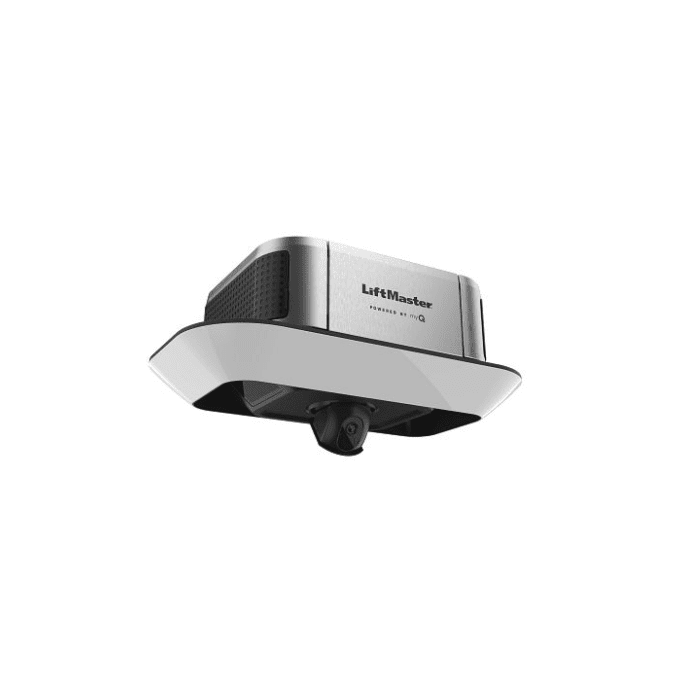

The LiftMaster 6690L is a premium belt-drive garage door opener built around a 12V DC motor with a lift capacity comparable to a 1-1/4 HP AC motor, making it well suited for high-use garages and harsh environmental conditions. Its full reinforced belt drive and DC motor are engineered for smooth, ultra-quiet performance—ideal for early mornings and late nights—while auto-force adjustment compensates for changing weather and electronic limits simplify setup.

This connected opener integrates myQ technology, allowing you to open, close, and monitor your garage from anywhere via smartphone or tablet, share access without sharing passcodes or keys, and connect to a trusted dealer for service. A built-in 360° adjustable camera with a swivel mount and a 130° wide-angle lens lets you keep eyes on your garage with live streaming through the myQ app. Integrated battery backup keeps the door working even during power outages.

Corner to Corner Lighting delivers 2,000 lumens of motion-activated 360° LED illumination for full, even brightness and hands-free convenience. The unit ships with everything needed for a complete system, including a Smart Control Panel, two 3-button remote controls, a wireless keyless entry system, The Protector System safety reversing sensors, and a battery. It is HomeLink compatible (version 4.0 or higher) and secured with Security+ 3.0.

• 12V DC motor (53 RPM) with belt drive and 63:1 gear reduction; lift capacity comparable to 1-1/4 HP AC motor
• Opening speed of 9" per second up and 6.5" per second down
• 2,000-lumen integrated 360° LED Corner to Corner Lighting with motion detection
• Built-in 360° adjustable camera with 130° wide-angle lens and live streaming via myQ
• Integrated battery backup for operation during power outages
• myQ connectivity, Security+ 3.0, and HomeLink compatibility (version 4.0 or higher)
• Lifetime warranty on motor and belt; 5-year on LED and parts; 1-year on battery, camera, and accessories
