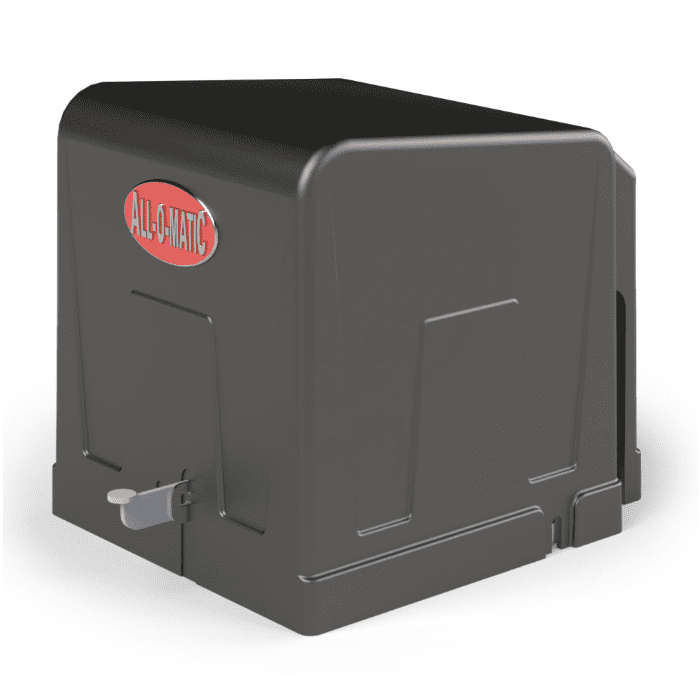

All-O-Matic 1/2 HP DC SLIDE GATE OPERATOR W FT PEDAL

The All-O-Matic SL-90DC PRO is a heavy-duty DC slide gate operator powered by a 24 VDC brushless ½ HP motor. Engineered for continuous-duty operation, it drives sliding gates up to 1,600 lbs. and up to 50 feet in length, with an adjustable gate speed of 6" to 12" per second. A mechanical foot pedal release provides manual operation when needed.

At the heart of the operator is the ALL-BLDC PRO control board, featuring an LCD display with on-board diagnostics, auto-close timer, obstruction sensing, and digital adjustments. Integrated wireless primary/secondary support, a partial open option, programmable auxiliary inputs, a built-in volt meter, cycle counter, and a USB port for extracting diagnostic data and firmware updates make it well suited to both residential and commercial installations. An AOM-RED EYE is included.

The SL-90DC PRO is solar ready, supporting 115/230 VAC single-phase power as well as a 24 VDC solar panel, and includes integrated battery backup. Available accessories include fire boxes, the PRIME VD-1 loop detector, a 24V solar panel, V-groove wheels, and guide rollers.

• 24 VDC brushless ½ HP motor with continuous duty cycle
• Max gate weight 1,600 lbs.; max gate length 50 feet
• Adjustable gate speed of 6"–12" per second
• ALL-BLDC PRO control board with LCD display, on-board diagnostics, and USB port for firmware updates
• Integrated battery backup with (2) 7Ah 12VDC batteries (150 cycles on a 1,000 lb. gate)
• Power options: 115/230 VAC single phase and 24 VDC solar panel; solar ready
• Mechanical foot pedal release; 7-year residential / 5-year commercial warranty
