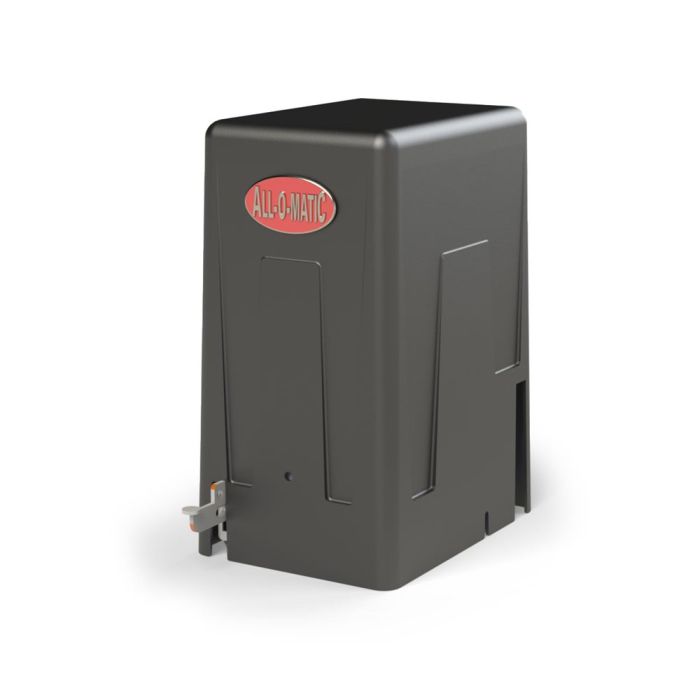

All-O-Matic 1/2 HP DC SLIDE GATE OPERATOR W FOOT PED

The All-O-Matic SL-100DC-PRO is a 1/2 HP DC slide gate operator built for reliable automated access control on sliding gates. Powered by a 24 VDC brushless ½ HP motor and rated for continuous duty, it drives gates up to 2,000 lbs. and up to 50 feet in length at an adjustable speed of 6" to 12" per second.

This operator is equipped with the ALL-BLDC PRO control board, featuring an LCD display with on-board diagnostics, auto close timer, obstruction sensing, digital adjustments, integrated wireless primary/secondary capability, a partial open option, and programmable auxiliary inputs. A USB port allows you to extract diagnostic data and apply firmware updates, while a built-in volt meter and cycle counter help with monitoring and maintenance. The included AOM-RED EYE adds to its access-control functionality.

Designed for both residential and commercial sites, it offers integrated battery backup with two 7Ah 12VDC batteries (80 cycles on a 1,000 lb. gate), solar-ready operation, and a mechanical foot pedal release for manual operation. It operates across a wide temperature range of -40 to 160 degrees, making it suitable for demanding installations.

• 24 VDC brushless ½ HP motor with continuous duty cycle
• Handles gates up to 2,000 lbs. and 50 feet in length, adjustable 6"-12" per second
• Power options: 115/230 VAC single phase and 24 VDC solar panel (20 amp dedicated breaker required)
• Integrated battery backup with two 7Ah 12VDC batteries; 80 cycles on a 1,000 lb. gate
• ALL-BLDC PRO control board with LCD display, on-board diagnostics, USB firmware updates, and cycle counter
• Mechanical foot pedal release and 20:1 gearbox with internal disconnect
• Warranty: 7-year residential / 5-year commercial; AOM-RED EYE included
