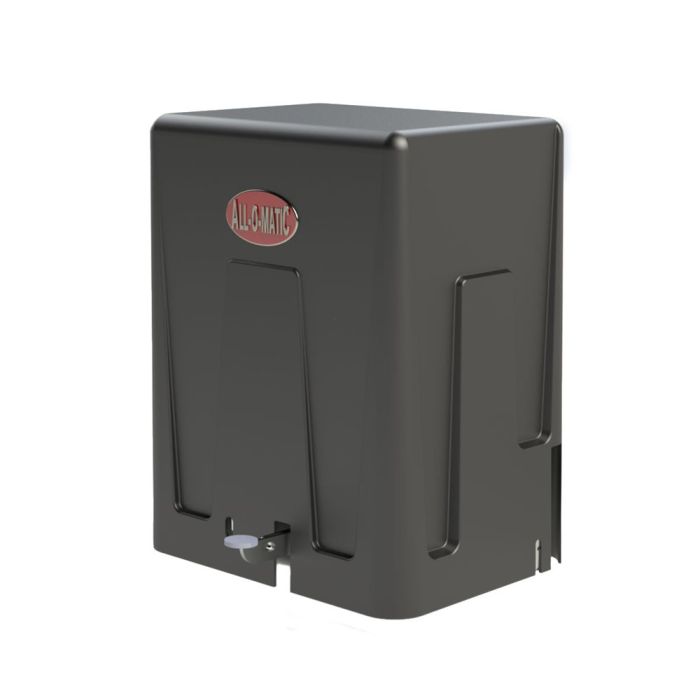

All-O-Matic 1/2 HP DC HD SLIDE GATE OPERATOR

The All-O-Matic SL-150DC PRO is a heavy-duty DC slide gate operator powered by a 24 VDC brushless ½ HP motor. Built for demanding access-control applications, it handles gates up to 3,000 lbs. and up to 60 feet in length, with an adjustable gate speed of 6" to 12" per second and a continuous duty cycle for reliable, ongoing operation.

At the heart of the unit is the ALL-BLDC PRO control board, featuring an LCD display with on-board diagnostics, a built-in volt meter, cycle counter, auto-close timer, and obstruction sensing. Digital adjustments, programmable auxiliary inputs, a partial-open option, and integrated wireless primary/secondary support make it a flexible solution for both residential and commercial installations. A USB port allows technicians to extract diagnostic data and perform firmware updates in the field.

The SL-150DC PRO is solar ready, supporting 115/230 VAC single-phase power or a 24 VDC solar panel, and includes integrated battery backup with two 7Ah 12VDC batteries for continued operation during power loss. A mechanical foot pedal release provides manual emergency access, and the AOM-RED EYE is included.

• 24 VDC brushless ½ HP motor; max gate weight 3,000 lbs., max gate length 60 feet
• Adjustable gate speed 6"-12" per second with continuous duty cycle
• ALL-BLDC PRO control board with LCD display, on-board diagnostics, auto-close timer, and obstruction sensing
• Integrated battery backup with (2) 7Ah 12VDC batteries; 100 cycles on a 1,000 lb. gate
• Power options: 115/230 VAC single phase or 24 VDC solar panel (solar ready)
• 30:1 gearbox ratio with internal clutch; mechanical foot pedal emergency release
• 7-year residential / 5-year commercial warranty; AOM-RED EYE included
